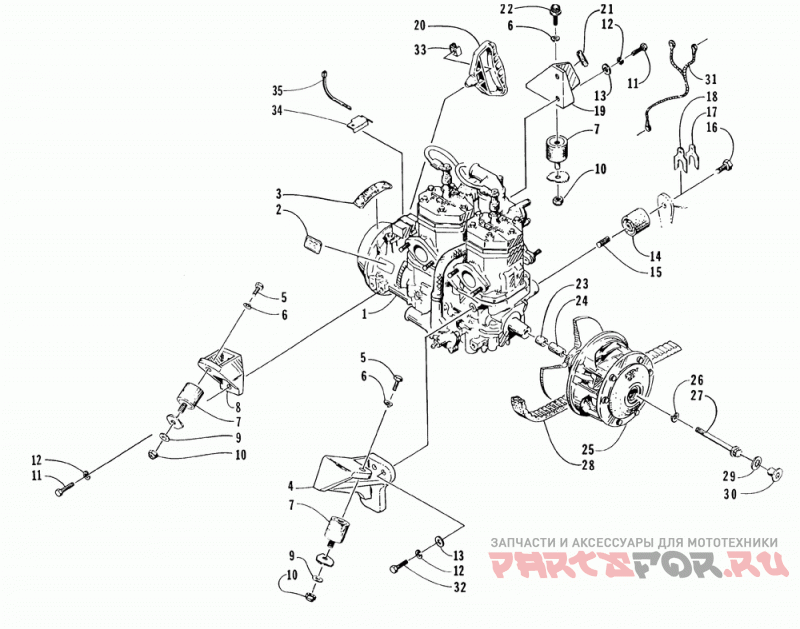

Опора двигателя и вариатор

Arctic Cat WILDCAT

Arctic Cat
#oem кодцена
1
0662-172
Engine, 700efi-sp W/o Efi Comp.
2
2611-323
Decal, Engine P/n 0662-167
3
1611-588
Decal, Engine-suzuki
3
1611-588
Decal, Engine-suzuki
4
0708-015
Brkt, Eng Mtg-front Pto-fabr
5
8002-222
Screw, Cap-hh 3/8-16 X1.00 G5 Z&y (10 Per Pack)
5
8002-222
Screw, Cap-hh 3/8-16 X1.00 G5 Z&y (10 Per Pack)
6
8051-277
Washer, Spr Lock-3/8 .377x.688x.115 Z&y (30 Per Pack)
6
8051-277
Washer, Spr Lock-3/8 .377x.688x.115 Z&y (30 Per Pack)
7
0608-061
Крепление двигателя
7
0608-061
Крепление двигателя
8
0708-014
Brkt, Eng Mtg-front Mag-fabr
8
0708-014
Brkt, Eng Mtg-front Mag-fabr
9
8050-277
Washer, Flat- 3/8 X 1.000 X .063 Z&y (25 Per Pack)
9
8050-277
Washer, Flat- 3/8 X 1.000 X .063 Z&y (25 Per Pack)
10
8040-486
Nut, Hex Lock-nyl 3/8-16 Z&y (5 Per Pack)
11
8012-131
Screw, Cap-hhnlp 5/16-18x.875 G5 Z&y (4 Per Pack)
11
8012-131
Screw, Cap-hhnlp 5/16-18x.875 G5 Z&y (4 Per Pack)
12
8051-242
Washer, Spr Lock-5/16 .314x.583x.078 Z&y (5 Per Pack)
12
8051-242
Washer, Spr Lock-5/16 .314x.583x.078 Z&y (5 Per Pack)
13
8050-242
Шайба - 5/16 X .625 X .063 (10 шт в упаковке)
13
8050-242
Шайба - 5/16 X .625 X .063 (10 шт в упаковке)
14
0608-075
Mount, Engine-rear (90duro)
14
0608-075
Mount, Engine-rear (90duro)
15
0623-281
Stud, Motor Mount 1/2-13 X 1.12
15
0623-281
Stud, Motor Mount 1/2-13 X 1.12
16
8002-400
Screw, Cap-hh 1/2-13 X.75 G5 Z&y (5 Per Pack)
17
0608-056
Shim, Eng Mtg-.060 Thk Ct116
17
0608-056
Shim, Eng Mtg-.060 Thk Ct116
18
0608-055
Shim, Eng Mtg-.030 Thk Ct132
18
0608-055
Shim, Eng Mtg-.030 Thk Ct132
19
0708-016
Brkt, Eng Mtg-rear Mag-fabr
19
0708-016
Brkt, Eng Mtg-rear Mag-fabr
20
0636-363
Рукоятка
20
0636-363
Рукоятка
21
0706-371
Окантовка
21
0706-371
Окантовка
22
0623-265
Screw, Flange 12-pt-3/8-16x3/4 (5 Per Pack)
23
0646-107
Spacer, Aluminum-clutch
23
0646-107
Spacer, Aluminum-clutch
24
0646-106
Spacer, Urethane-clutch
24
0646-106
Spacer, Urethane-clutch
25
0746-194
Clutch, Drive-uncal-8.0" 30mm/s/nfp
25
0746-194
Clutch, Drive-uncal-8.0" 30mm/s/nfp
26
0623-210
Шайба
26
0623-210
Шайба
27
0623-206
Bolt, Counterbore-1/2-20x5.5
27
0623-206
Bolt, Counterbore-1/2-20x5.5
28
0627-010
Drive Belt, Cvt-12.2
28
0627-010
Drive Belt, Cvt-12.2
29
0646-114
Washer, Internal Lock-hd-7/8
30
0646-113
Cap, Retainer-comet Clutch
30
0646-113
Cap, Retainer-comet Clutch
31
0686-175
Harness, Battery Ground
31
0686-175
Harness, Battery Ground
32
8012-132
Screw, Cap-hhnlp 5/16-18x1.0 G5 Z&y (5 Per Pack)
32
8012-132
Screw, Cap-hhnlp 5/16-18x1.0 G5 Z&y (5 Per Pack)
33
0606-885
Колпачек
33
0606-885
Колпачек
34
0608-117
Brkt, Ground Wire-engine
34
0608-117
Brkt, Ground Wire-engine
35
0123-788
Стяжка кабеля (отпуск.по 10 шт)
35
0123-788
Стяжка кабеля (отпуск.по 10 шт)
