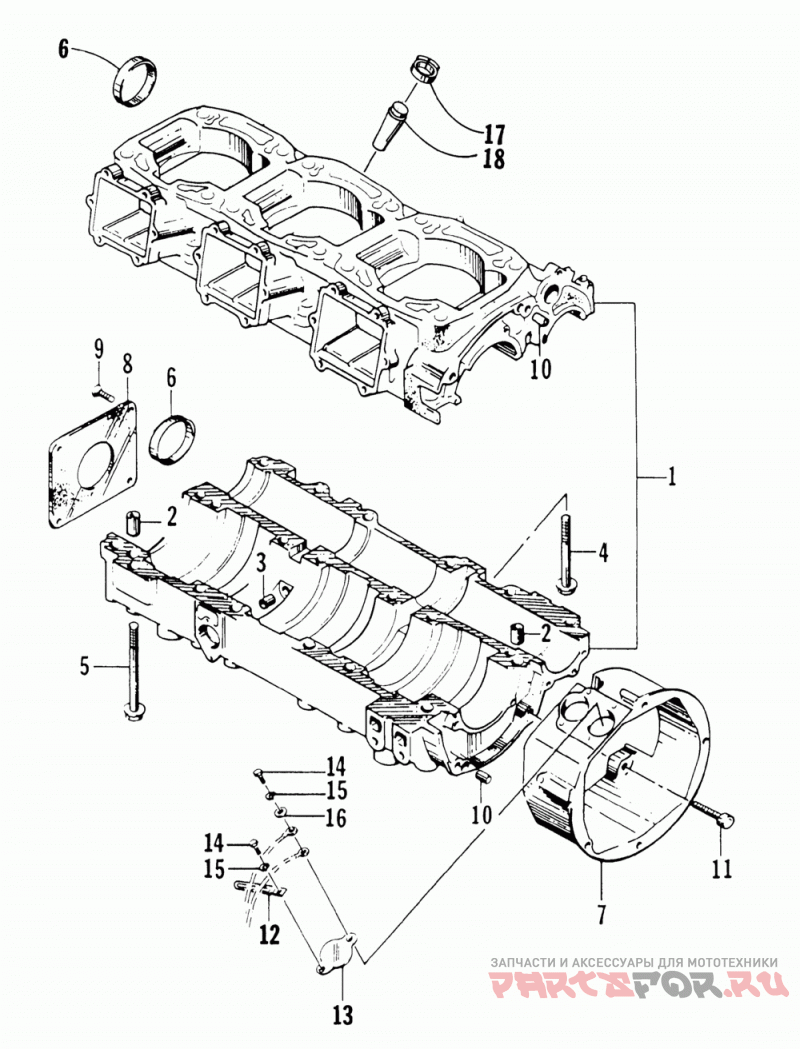

Блок цилиндров

Arctic Cat THUNDERCAT

Arctic Cat
#oem кодцена
1
3005-146
Crankcase Assy (800/1000 L/c)
1
3005-146
Crankcase Assy (800/1000 L/c)
2
3003-646
Pin, Crankcase, Alingment, 11mm
2
3003-646
Pin, Crankcase, Alingment, 11mm
3
3003-289
Втулка
3
3003-289
Втулка
4
3008-212
Bolt, 10x70
4
3008-212
Bolt, 10x70
5
3004-501
Bolt, 10x90
5
3004-501
Bolt, 10x90
6
3004-539
Plug, Balancer (52mm Od)
6
3004-539
Plug, Balancer (52mm Od)
7
3004-158
Case, Magneto
7
3004-158
Case, Magneto
8
3007-367
Kit, Oil Seal Plate
8
3007-367
Kit, Oil Seal Plate
9
3007-393
Screw, M6x16
9
3007-393
Screw, M6x16
10
3002-012
Pin, Dowel 9 X 12
10
3002-012
Pin, Dowel 9 X 12
11
3007-557
Болт
11
3007-557
Болт
12
1623-984
Зажим (2 шт в упаковке)
12
1623-984
Зажим (2 шт в упаковке)
13
3004-129
Plate, Cover-sensor
13
3004-129
Plate, Cover-sensor
14
0623-352
Screw, Cap-hh 5mmx.8x12 Cl8.8 Z&y (2 Per Pack)
14
0623-352
Screw, Cap-hh 5mmx.8x12 Cl8.8 Z&y (2 Per Pack)
15
8051-152
Washer, Spr Lock-#10 .193x.334x.047 Z&y (20 Per Pack)
15
8051-152
Washer, Spr Lock-#10 .193x.334x.047 Z&y (20 Per Pack)
16
8050-157
Washer, Flat- #10 X .500 X .049 Z&y (20 Per Pack)
16
8050-157
Washer, Flat- #10 X .500 X .049 Z&y (20 Per Pack)
17
0623-063
Clamp, Hose (snp02) (5 Per Pack)
17
0623-063
Clamp, Hose (snp02) (5 Per Pack)
18
0670-323
Plug, Impulse Nipple
18
0670-323
Plug, Impulse Nipple
