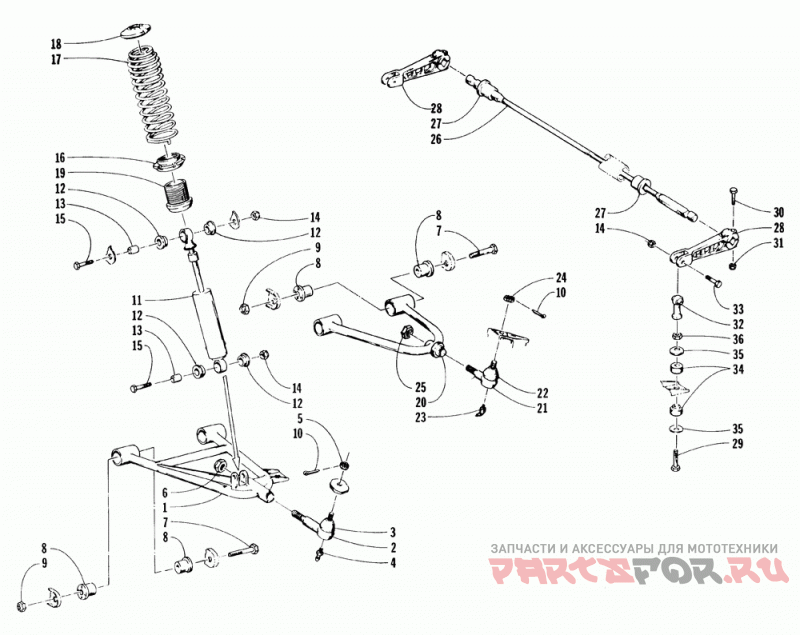

Передняя подвеска и амортизатор

Arctic Cat JAG LIQUID

Arctic Cat
#oem кодцена
1
1703-614
Arm, Front-lower-rh-mach.
1
1703-614
Arm, Front-lower-rh-mach.
1
1703-615
Arm, Front-lower-lh-mach.
1
1703-615
Arm, Front-lower-lh-mach.
2
0603-461
Ball Joint, Lower-assy
2
0603-461
Ball Joint, Lower-assy
3
0603-149
Boot, Dust-ball Joint {40149}
3
0603-149
Boot, Dust-ball Joint {40149}
4
1623-654
Штуцер(отпуск.по 5 шт)
4
1623-654
Штуцер(отпуск.по 5 шт)
4
0623-451
Fitting, Grease-straight-metric
4
0623-451
Fitting, Grease-straight-metric
6
0623-273
Nut, Nyl-loc 3/4-16-z&y (2 Per Pack)
6
0623-273
Nut, Nyl-loc 3/4-16-z&y (2 Per Pack)
7
8002-411
Screw, Cap-hh 1/2-13 X3.00 G5 Z&y (4 Per Pack)
7
8002-411
Screw, Cap-hh 1/2-13 X3.00 G5 Z&y (4 Per Pack)
8
0603-485
Bushing-front Suspension
9
8040-606
Nut, Hex Lock-nyl 1/2-13 Z&y (5 Per Pack)
9
8040-606
Nut, Hex Lock-nyl 1/2-13 Z&y (5 Per Pack)
10
0623-175
Pin, Cotter 3/32 X 1 (5 Per Pack)
10
0623-175
Pin, Cotter 3/32 X 1 (5 Per Pack)
11
0603-420
Shock Absorber-frt Susp
11
0603-420
Shock Absorber-frt Susp
12
0604-310
Bushing, Shock Absorber (4 Per Pack)
12
0604-310
Bushing, Shock Absorber (4 Per Pack)
13
0604-309
Втулка амортизатора
13
0604-309
Втулка амортизатора
14
8040-486
Nut, Hex Lock-nyl 3/8-16 Z&y (5 Per Pack)
15
8002-226
Screw, Cap-hh 3/8-16 X1.75 G5 Z&y (5 Per Pack)
15
8002-226
Screw, Cap-hh 3/8-16 X1.75 G5 Z&y (5 Per Pack)
16
0603-259
Гайка
16
0603-259
Гайка
17
0603-152
Spring, Compression-frt Susp
17
0603-152
Spring, Compression-frt Susp
18
1603-889
Держатель пружинок
18
1603-889
Держатель пружинок
19
0603-147
Гильза
20
1703-610
Arm, Front-upper-mach.
20
1703-610
Arm, Front-upper-mach.
21
2603-812
Ball Joint, Spindle-upper
21
2603-812
Ball Joint, Spindle-upper
22
0603-258
Boot, Dust-ball Joint
22
0603-258
Boot, Dust-ball Joint
23
0623-277
Fitting, Grease 1/4-28 Self Tapping-45 De (5 Per Pack)
23
0623-277
Fitting, Grease 1/4-28 Self Tapping-45 De (5 Per Pack)
23
0623-452
Fitting, Grease-45 Degree-metric
23
0623-452
Fitting, Grease-45 Degree-metric
24
0623-232
Nut, Hex-slotted 1/2-20unf
25
0623-455
Nut, Flex Lock-thin 5/8-18 Z&y (2 Per Pack)
25
0623-455
Nut, Flex Lock-thin 5/8-18 Z&y (2 Per Pack)
26
0703-202
Стабилизатор
26
0703-202
Стабилизатор
27
0603-151
Подшипник, -квадрат
27
0603-151
Подшипник, -квадрат
28
0603-140
Arm, Sway Bar-ptd Blk
28
0603-140
Arm, Sway Bar-ptd Blk
29
0623-159
Screw, Caphex 3/8-24 X 2.5 (2 Per Pack)
29
0623-159
Screw, Caphex 3/8-24 X 2.5 (2 Per Pack)
30
8002-137
Screw, Cap-hh 5/16-18 X2.00 G5 Z&y (5 Per Pack)
31
8040-426
Nut, Hex Lock-nyl 5/16-18 Z&y (20 Per Pack)
31
8040-426
Nut, Hex Lock-nyl 5/16-18 Z&y (20 Per Pack)
32
0105-236
Ball Joint, Tie Rod (female)
32
0105-236
Ball Joint, Tie Rod (female)
33
8002-225
Screw, Cap-hh 3/8-16 X1.50 G5 Z&y (5 Per Pack)
33
8002-225
Screw, Cap-hh 3/8-16 X1.50 G5 Z&y (5 Per Pack)
35
0603-142
Retainer, Bushing-sway Bar
35
0603-142
Retainer, Bushing-sway Bar
36
0123-191
Гайка 3/8-24(right Hand) (отпуск.по 5 шт)
