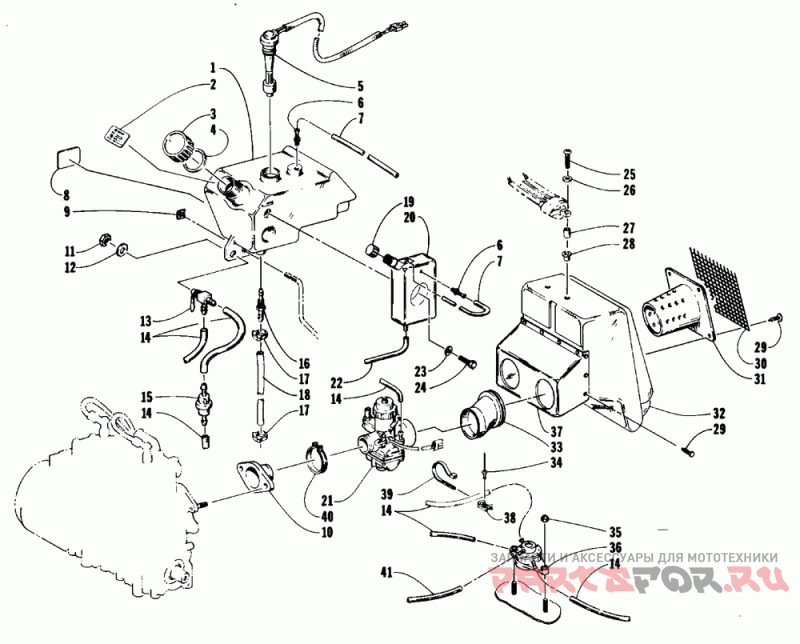

Карбюратор, топливный насос, масляный бак, и глушитель

Arctic Cat 580ZR

Arctic Cat
#oem кодцена
0636-276
Pump Kit, Fuel-round
0636-276
Pump Kit, Fuel-round
1
0770-096
Масляный бак
1
0770-096
Масляный бак
2
1611-564
Decal, Oil Tank
2
1611-564
Decal, Oil Tank
3
0670-341
Cap, Oil Tank-w/seal
3
0670-341
Cap, Oil Tank-w/seal
4
0109-733
Прокладка крышки бака
4
0109-733
Прокладка крышки бака
5
0609-031
Sensor, Low Oil
5
0609-031
Sensor, Low Oil
6
0115-135
Vent, Gas Tank (5 Per Pack)
6
0115-135
Vent, Gas Tank (5 Per Pack)
7
0610-010
Hose, Vent-25 Ft
7
0610-010
Hose, Vent-25 Ft
8
0611-978
Decal, Fuel Shut-off Valve
8
0611-978
Decal, Fuel Shut-off Valve
9
0623-434
Clip-push On .250 Dia. (5 Per Pack)
9
0623-434
Clip-push On .250 Dia. (5 Per Pack)
10
0670-197
Flange, Carb-38mm W/clamp
10
0670-197
Flange, Carb-38mm W/clamp
11
0623-287
Nut, Jam-9/16-18 Unf
11
0623-287
Nut, Jam-9/16-18 Unf
12
0623-288
Washer, Flat-9/16 Id
12
0623-288
Washer, Flat-9/16 Id
13
0670-144
Valve, Shut Off-fuel
13
0670-144
Valve, Shut Off-fuel
14
0610-017
Hose, Gas 3/16 X100'
14
0610-017
Hose, Gas 3/16 X100'
14
0610-008
Hose, Gas Line-3/16x25'
14
0610-008
Hose, Gas Line-3/16x25'
15
0470-988
Filter, Fuel-inline (2 Per Pack)
15
0470-988
Filter, Fuel-inline (2 Per Pack)
16
0115-739
Fitting, Oil Tank Outlet (5 Per Pack)
16
0115-739
Fitting, Oil Tank Outlet (5 Per Pack)
17
0124-045
Clamp, Hose - .402/.449 Dia (snp04) (10 Per Pack)
17
0124-045
Clamp, Hose - .402/.449 Dia (snp04) (10 Per Pack)
18
0610-011
Hose, Oilline 5/16x25'
18
0610-011
Hose, Oilline 5/16x25'
19
0670-035
Cap, Tank-water
19
0670-035
Cap, Tank-water
20
0606-470
Tank, Water-coolant
20
0606-470
Tank, Water-coolant
21
0770-084
Carb, Vm38-256w/carb Switch
21
0770-084
Carb, Vm38-256w/carb Switch
22
0610-016
Hose, Gas 1/4 X25'
22
0610-016
Hose, Gas 1/4 X25'
23
8050-222
Washer, Flat- 1/4 X .734 X .063 Z&y (20 Per Pack)
23
8050-222
Washer, Flat- 1/4 X .734 X .063 Z&y (20 Per Pack)
24
8002-039
Screw, Cap-hh 1/4-20 X.625 G5 Z&y (5 Per Pack)
24
8002-039
Screw, Cap-hh 1/4-20 X.625 G5 Z&y (5 Per Pack)
25
0623-082
Screw, Mach-phtrh #10-32x1.75 Z&y (5 Per Pack)
25
0623-082
Screw, Mach-phtrh #10-32x1.75 Z&y (5 Per Pack)
26
8050-157
Washer, Flat- #10 X .500 X .049 Z&y (20 Per Pack)
26
8050-157
Washer, Flat- #10 X .500 X .049 Z&y (20 Per Pack)
27
0107-630
Spacer, Fuel Pump (2 Per Pack)
27
0107-630
Spacer, Fuel Pump (2 Per Pack)
28
0623-084
Rivet Nut, Flat Head 10-32unf X .130-.180 (5 Per Pack)
29
0623-165
Зажим 5/32 (отпускается по 5 шт)
29
0623-165
Зажим 5/32 (отпускается по 5 шт)
30
0670-155
Экран, глушителя нижняя часть
30
0670-155
Экран, глушителя нижняя часть
31
0670-151
Funnel, Air Silencer
31
0670-151
Funnel, Air Silencer
32
0770-116
Silencer, Air-w/riv Nuts
32
0770-116
Silencer, Air-w/riv Nuts
33
1670-389
Boot, Air Silencer
33
1670-389
Boot, Air Silencer
34
8060-504
Заклепка (цена за шт.(20шт в упаковке)
34
8060-504
Заклепка (цена за шт.(20шт в упаковке)
35
8040-366
Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)
35
8040-366
Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)
36
0670-311
Fuel Pump-assy.(df52-152)
36
0670-311
Fuel Pump-assy.(df52-152)
37
0670-306
Extension, Airbox
37
0670-306
Extension, Airbox
38
0623-228
Mount, Cable Tie (5 Per Pack)
38
0623-228
Mount, Cable Tie (5 Per Pack)
39
0123-788
Стяжка кабеля (отпуск.по 10 шт)
39
0123-788
Стяжка кабеля (отпуск.по 10 шт)
40
0670-110
Clamp, Carb-flange (36/38 Mm)
40
0670-110
Clamp, Carb-flange (36/38 Mm)
41
0610-007
Шланг
41
0610-007
Шланг
46
8007-577
Screw, Mach-crth 1/4-20x.50 G2 Z&y (10 Per Pack)
46
8007-577
Screw, Mach-crth 1/4-20x.50 G2 Z&y (10 Per Pack)
47
1623-984
Зажим (2 шт в упаковке)
47
1623-984
Зажим (2 шт в упаковке)
