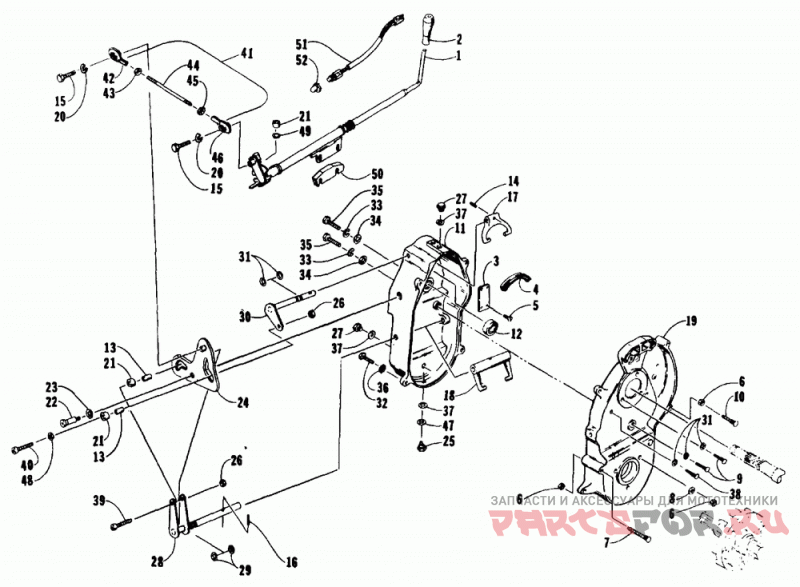

Shift lever and dropcase assembly

Arctic Cat SUPER JAG

Arctic Cat
#oem кодцена
1
0702-154
Lever, Shift-weld't
2
0602-152
Набалдашник
3
0602-221
Cover, Oil Vent-dropcase Cover
4
0107-214
Seal, Dropcase Cover (2 Per Pack)
5
0623-081
Screw, Self Tap-phpnh 8-32x.31 F Z&y (6 Per Pack)
6
8040-426
Nut, Hex Lock-nyl 5/16-18 Z&y (20 Per Pack)
7
8011-140
Bolt, Crg 5/16-18x2.75 Gr1 Z&y (5 Per Pack)
8
8050-247
Washer, Flat- 5/16 X .688 X .065 Z&y (10 Per Pack)
9
0123-523
Bolt, Rib Neck-rdh 5/16-18x.625 Z&y (5 Per Pack)
10
8002-137
Screw, Cap-hh 5/16-18 X2.00 G5 Z&y (5 Per Pack)
11
0702-156
Cover, Dropcase W/bearing
12
0602-206
Bearing, Ball .625 Id
13
0602-422
Sleeve, Shift Roller
14
8070-309
Pin, Spring-3/16 X 11/16 Slotted P&o (5 Per Pack)
15
8002-132
Screw, Cap-hh 5/16-18 X1.00 G5 Z&y (5 Per Pack)
16
0623-542
Pin, Spring-3/16 X 7/8 Coiled Blk (5 Per Pack)
17
0602-184
Fork, Shift-mach-2 Speed
18
0602-085
Вилка
19
0702-163
Dropcase W/ribbed Bolts
20
8051-247
Washer, Spr Lock-5/16 .314x.593x.097 Z&y (5 Per Pack)
23
0623-130
Washer, Spring-3/8 (5 Per Pack)
25
0623-251
Plug, Dropcase Cover-magnetic
26
8041-246
Nut, Hex Thin Lock-nyl 10-24 Z&y (5 Per Pack)
27
0623-293
Штепсель, Дренажный
28
0702-119
Shaft, Shift-weldment
29
0602-021
Уплотнительное кольцо
30
0702-085
Shaft-weldment
31
0607-025
O-ring, Stud (5 Per Pack)
32
8002-132
Screw, Cap-hh 5/16-18 X1.00 G5 Z&y (5 Per Pack)
33
8051-242
Washer, Spr Lock-5/16 .314x.583x.078 Z&y (5 Per Pack)
34
8050-242
Шайба - 5/16 X .625 X .063 (10 шт в упаковке)
35
8002-134
Screw, Cap-hh 5/16-18 X1.25 G5 Z&y (5 Per Pack)
36
8053-242
Шайба (10 шт в упаковке)
37
0123-641
Washer, Fiber-1/2x13/16x.030 (10 Per Pack)
38
0623-117
Bolt, Rib Neck-rdh 1/4-20x1.00 Z&y (5 Per Pack)
39
8005-402
Screw, Cap-hsh 10-24x1.0 Z&y (4 Per Pack)
40
8005-401
Screw, Cap-hsh 10-24x.875 Z&y (4 Per Pack)
41
0702-148
Link, Shifting-ass'y
42
0602-322
Rod End, 5/16-24-rh
43
0123-144
Nut, Hex-jam 5/16-24 Nf Zn (2 Per Pack)
44
0602-320
Rod, Linkage
45
0623-260
Nut, Hex Jam 5/16-24 Nf L H (5 Per Pack)
46
0602-305
Rod End L.h. 5/16-24 Unf
47
8050-332
Washer, Flat- 1/2 X 1.000 X .063 Z&y (20 Per Pack)
48
8050-212
Шайба 1/4 X .500 X .063 (отпуск по 10 шт)
49
0623-298
Snap Ring, Extl-.25 Dia
50
0602-429
Spacer, Shift Pivot
51
0630-011
Switch, Alarm
52
0630-013
Boot, Switch-reverse
