  5. RH6000 A REAR 3-POINT HITCH, JPN, VIN# RH6000-A100001

Cutter Deck Lift Arm

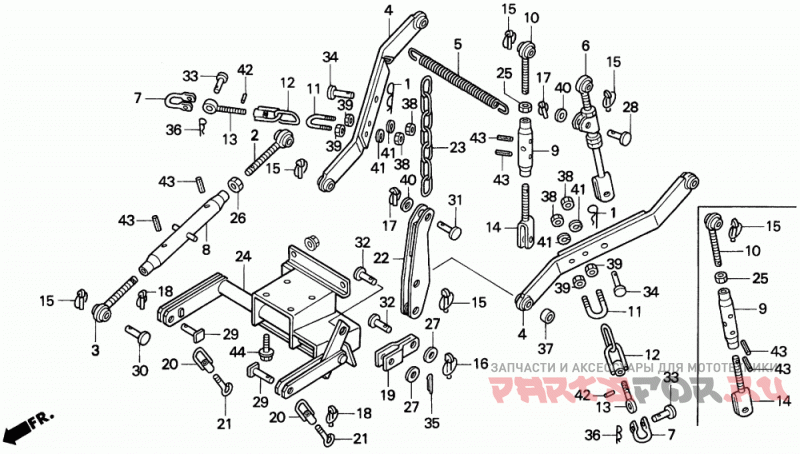

Honda RH6000 A REAR 3-POINT HITCH, JPN, VIN# RH6000-A100001

Honda
#oem кодцена
1
50641-719-000
PIN, LOCK
2
50910-759-810
HOLDER, R. LINK (UPPER)
3
50920-759-810
HOLDER, L. LINK (UPPER)
4
50940-764-M30
LINK (LOWER)
5
50941-764-M30
SPRING, STOPPER
6
50950-764-M30
ROD, L. LIFT
7
50951-764-M30
Стойка стабилизатора
8
50952-759-810
BUCKLE, LINK TURN (UPPER)
9
50953-764-M30
BUCKLE, LIFT ROD TURN
10
50960-764-M30
ROD, R. LIFT (UPPER)
11
50966-764-M30
BOLT, STABILIZER (12MM)
12
50967-764-M30
NUT, STABILIZER JOINT (16MM)
13
50968-764-M30
BOLT, STABILIZER JOINT (16MM)
14
50970-764-M30
ROD, R. LIFT (LOWER)
15
50990-759-000
LINCHPIN ASSY.
17
50990-769-M01
LINCHPIN ASSY.
23
76345-764-M30
CHAIN, LIFT LINK
25
90303-752-630
NUT, HEX. (20MM)
26
90342-759-810
NUT, HEX. (22MM)
28
90751-764-M30
PIN, RR. LINK
30
90754-759-M10
PIN (19X76)
33
90760-752-J00
PIN, LIFT ARM (10X51.5)
34
90764-764-M30
PIN, LINK (LOWER)
36
90793-759-000
PIN, SNAP
37
91552-752-M30
COLLAR, ADJUSTING (1/2")
38
94001-12000-0S
Гайка (12мм)
39
94002-12000-0S
Гайка (12мм)
40
94101-16800
Шайба (16mm)
41
94111-12800
WASHER, SPRING (12MM)
42
94305-30182
PIN, SPRING (3X18)
43
94305-40222
PIN, SPRING (4X22)
