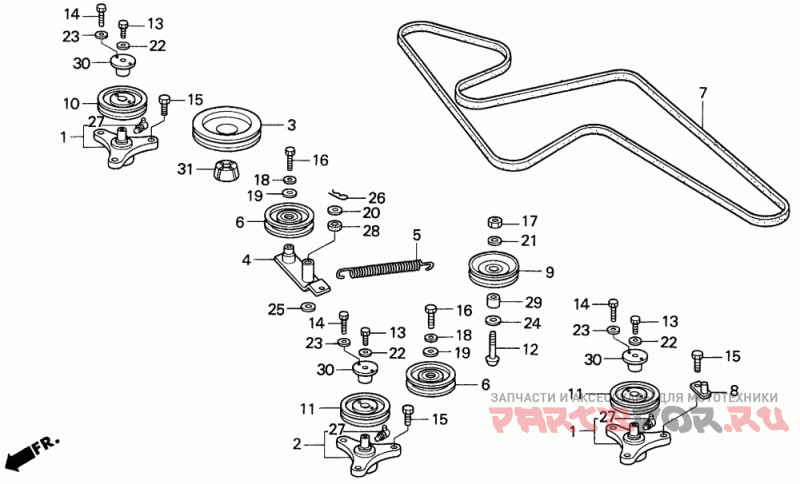

Blade Pulley

Honda MM60 A MID-MOUNT MOWER, JPN, VIN# MM2-1000001

Honda
#oem кодцена
1
72701-764-L31
HOUSING ASSY., BEARING
2
72702-764-L31
SPINDLE ASSY., CENTER
3
75171-764-L31
PULLEY, DRIVE
4
76120-764-L31
ARM, TENSION
5
76122-764-L32AH
SEE PART DETAILS - PRI; SPRING, TENSIONER ARM
5
76121-764-L31
SEE PART DETAILS - SUP; SPRING ASSY.
6
76130-769-M01
ROLLER, TENSIONER
7
76181-764-L31
V-BELT, BLADE
8
76183-769-M01
STOPPER, BELT
9
76195-764-L31
SEE PART DETAILS - PRI; PULLEY, IDLER
10
76220-764-L31
PULLEY, R. BLADE
11
76221-764-L31
PULLEY, L. BLADE
12
90101-764-L31
BOLT (5/8X2-1/2)
13
90106-769-M01
BOLT (1/4 NCX1/2 HHCS)
14
90104-769-M01
BOLT (1/4 NCX1 HHCS)
15
90105-769-M01
BOLT (1/2NF HHCS)
16
90110-764-L31
Болт
17
90309-764-L31
NUT (5/8 NC HEX. LOCK)
18
90501-764-L31
WASHER (3/8 STD LOCK)
19
90502-764-L31
WASHER, TENSIONER ARM
20
90504-764-L31
WASHER (5/8X1-1/8X0.095)
21
90506-769-M01
WASHER, FLAT (5/8)
22
90508-769-M01
WASHER, FLAT (1/4X7/8X7GA)
23
90509-769-M01
WASHER, LOCK (1/4)
24
90511-769-M01
WASHER, SAE FLAT (7/8)
25
90515-764-L31
WASHER (5/8X1-1/16X10GA)
26
90756-769-M01
PIN, LOCK (19MM)
28
91251-769-M01
DUST SEAL (5/8X1X1/4)
29
91551-764-L31
COLLAR (5/8X1X43/64)
30
91556-764-L31
BUSH, PULLEY SETTING
31
91557-764-L31
BUSH ASSY., TAPER LOCK (3/4)
