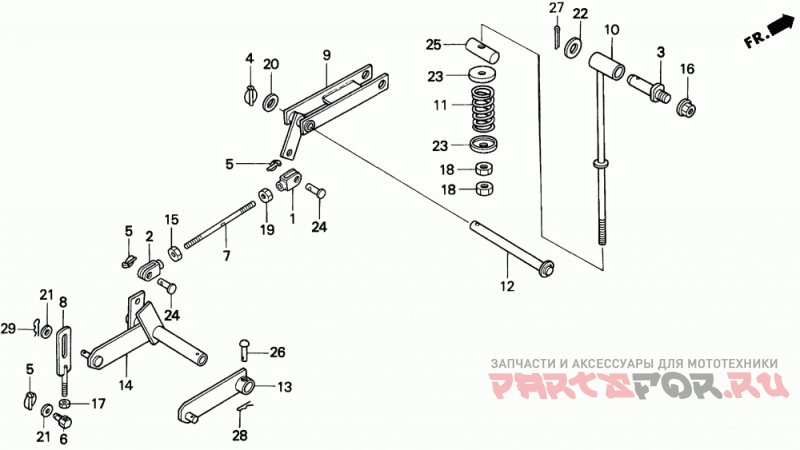

Mm52 Cutter Deck Lift Arm

Honda MM52 A 52" MID-MOUNT MOWER, JPN

Honda
#oem кодцена
1
50628-769-M01
ROD, R. ADJUSTING LIFT
2
50638-769-M01
ROD, L. ADJUSTING LIFT
3
50914-769-M01
PIN, LIFT ARM
4
50990-764-L31
LINCHPIN ASSY. (1/4)
5
50990-769-M01
LINCHPIN ASSY.
6
76185-769-M01
PIN, FR. LINK ADJUSTING
7
76315-769-M01
ROD, CUTTER DECK LIFT
9
76320-769-M01
LINK, CUTTER DECK LIFT
10
76325-769-M01
ROD, LIFT LINK
12
76454-769-M01
SHAFT, LIFT LINK
13
76670-769-M01
ARM, R. LIFT
14
76680-769-M01
ARM, L. LIFT
15
90301-769-M01
NUT, HEX. (0.625 NF PLATED)
16
90309-764-L31
NUT (5/8 NC HEX. LOCK)
17
90307-769-M01
NUT (1/2 NC JAM)
18
90308-769-M01
NUT (5/8 NC HEX.)
19
90309-769-M01
NUT, HEX. (0.625 NF RH PLATED)
20
90511-769-M01
WASHER, SAE FLAT (7/8)
21
90512-769-M01
WASHER, STD SAE (5/8)
22
90513-769-M01
WASHER (3/4X1-3/16X10GA)
23
90516-769-M01
Шайба (16 мм)
24
90752-769-M01
PIN, FR. LINK
26
90755-769-M01
PIN, LIFT ARM
27
90760-769-M01
PIN, SPLIT (3/32X1-1/2)
28
90761-769-M01
PIN, SAFETY (3/32)
29
94252-16100
PIN, LOCK (16MM)
