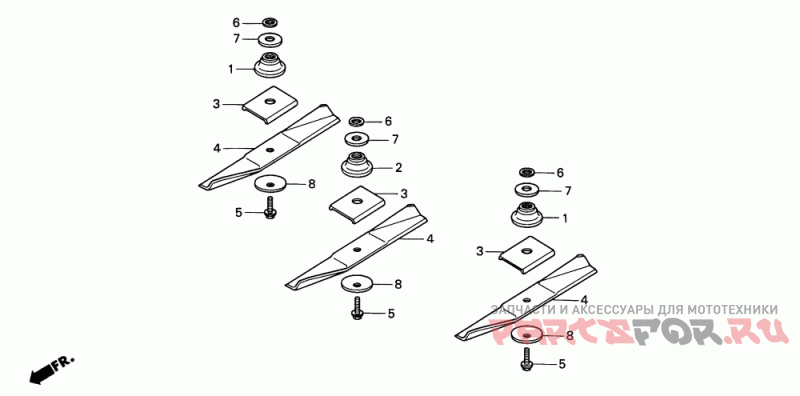

Rotary Blade
Honda MM46 A MID-MOUNT MOWER, JPN, VIN# RAB-0000001
| # | oem код | название | цена |
|---|---|---|---|
1 | 72620-751-701 HOLDER, BLADE | HOLDER, BLADE | |
3 | 72625-751-700 HOLDER, BLADE (B) | HOLDER, BLADE (B) | |
4 | 72531-752-J00 BLADE, ROTARY | BLADE, ROTARY | |
5 | 90105-751-701 SEE PART DETAILS - PRI; BOLT, BLADE HOLDER (10X28) | SEE PART DETAILS - PRI; BOLT, BLADE HOLDER (10X28) | |
6 | 90428-752-830 WASHER, THRUST (20MM) | WASHER, THRUST (20MM) | |
7 | 90429-752-830 WASHER, BLADE HOLDER | WASHER, BLADE HOLDER | |
8 | 90510-751-701 SEE PART DETAILS - PRI; WASHER, BLADE | SEE PART DETAILS - PRI; WASHER, BLADE |
