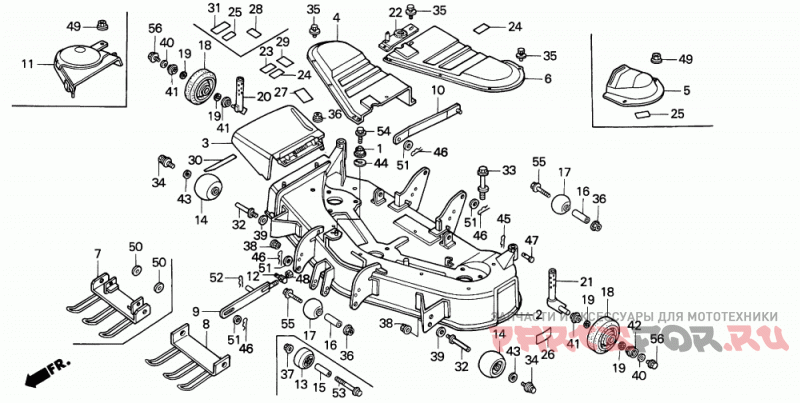

Cutter Housing

Honda MM46 A MID-MOUNT MOWER, JPN, VIN# RAB-0000001

Honda
#oem кодцена
1
60407-ZA7-000
RUBBER (LOWER)
3
76150-752-830ZA
ADAPTER, DISCHARGE *NH190M*
8
76162-752-830
PLATE, FR. LINK (LOWER)
10
76172-752-830
LINK, RR. DECK
12
76185-752-830
PIN, FR. LINK ADJUSTING
14
76231-752-831
ROLLER, ANTI-SCALP
16
76232-752-830
COLLAR, ANTI-SCALP ROLLER
17
76235-752-831
ROLLER, ANTI-SCALP (2)
18
76280-752-831
ROLLER ASSY., GAUGE
19
76281-752-830
DUST SEAL, GAUGE ROLLER
20
76285-752-830
ARM, R. GAUGE ROLLER
21
76286-752-830
ARM, L. GAUGE ROLLER
24
87122-751-700
LABEL A, WARNING (ENGLISH)
27
87137-752-830
MARK, CUTTER SIDE
29
87138-752-830
MARK, HEIGHT ADJUSTING
30
87139-752-830
MARK, CUT WIDTH (ENGLISH)
32
90107-752-830
SHAFT, ANTI-SCALP ROLLER
33
90109-751-000
BOLT, BELT STOPPER
34
90110-VA4-000
Болт
35
90111-752-830
Болт с шайбой (м6x16)
36
90117-SB2-000
NUT, SELF-LOCK (8MM)
38
90306-750-A00
NUT, SELF-LOCK (12MM)
39
90403-750-A00
ШАЙБА, 12 MM
40
90405-758-L00
SEE PART DETAILS - PRI; WASHER (10.5X27X4)
40
90405-752-830
SEE PART DETAILS - SUP; WASHER (10.5X27)
41
90407-752-830
COLLAR, GAUGE ROLLER
42
90408-752-830
COLLAR, GAUGE ROLLER
43
90430-657-000
WASHER (23X8.3X3.2)
44
90501-752-830
WASHER (40MM)
45
90651-703-000
PIN, SNAP (7MM)
46
90702-752-831
PIN, LOCK (14MM)
47
90755-708-000
PIN B, WHEEL
48
94001-12000-0S
Гайка (12мм)
51
94101-14800
WASHER, FLAT (14MM)
52
94252-12000
PIN, LOCK (12MM)
54
95701-06014-08
Болт (6x14)
55
95801-08100-08
BOLT, FLANGE (8X100)
