  5. HT4213 SA LAWN TRACTOR, JPN, VIN# MAAT-5000001 TO MAAT-5099999

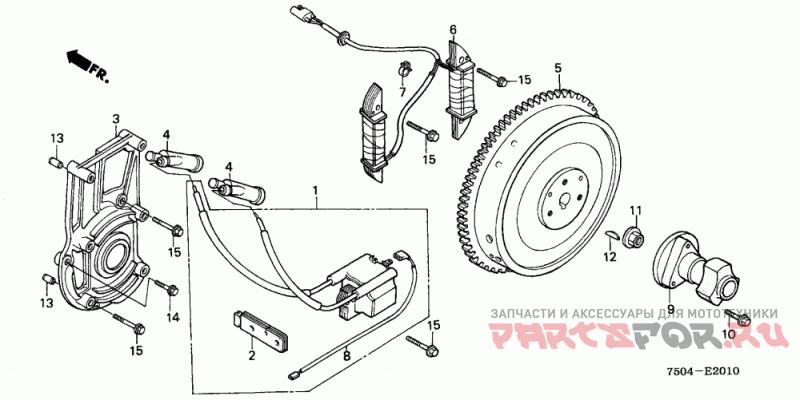

Ignition Coil + Flywheel (ht3813-k1-4213)

Honda HT4213 SA LAWN TRACTOR, JPN, VIN# MAAT-5000001 TO MAAT-5099999

Honda
#oem кодцена
1
30500-ZA0-701
COIL ASSY., IGNITION
2
30505-ZA0-700
GROMMET, IGNITION WIRE
3
30525-ZA0-700
STAY, IGNITION SYSTEM
4
30700-ZE1-013
CAP ASSY., NOISE SUPPRESSOR
5
31100-ZA0-703
Маховик
6
31630-ZA0-701
COIL ASSY., CHARGE (10A)
7
30701-883-000
CLIP, IGNITION WIRE (8MM)
7
32175-647-920
Зажим
8
36101-ZA0-700
WIRE, ENGINE STOP
9
40211-890-950
DAMPER A, PROPELLER SHAFT
10
90112-413-000
Болт (8х33)
11
90201-889-000
Гайка (16мм)
11
90201-ZE3-790
Гайка (16мм)
12
90741-ZE2-000
KEY, SPECIAL WOODRUFF (25X18)
13
94301-08100
SEE PART DETAILS - PRI; PIN A, DOWEL (8X10)
14
95701-06022-08
SEE PART DETAILS - PRI; BOLT, FLANGE (6X22)
15
95701-06032-08
Болт (6х32)
