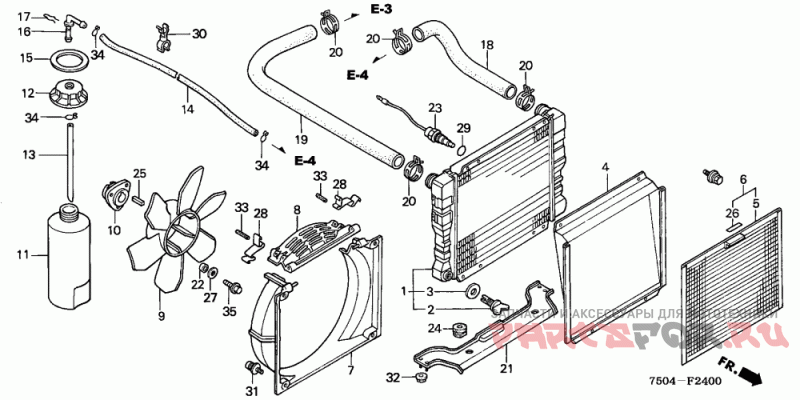

Radiator (ht3813-k1-4213)

Honda HT3813K1 SA LAWN TRACTOR, JPN, VIN# HT3813-5100001 TO HT3813-5199999

Honda
#oem кодцена
2
19011-PA0-004
VALVE, DRAIN (TOYO)
3
19012-PA0-004
GASKET, DRAIN (TOYO)
4
19012-750-801
GUIDE, FR. SCREEN
9
19040-750-800
Вентилятор
11
19101-PA0-000
Расширительный бачек
12
19102-PA0-020
Крышка расширительного бачка
13
19103-PA0-000
HOSE, RESERVE TANK
14
19104-679-020
SEE PART DETAILS - PRI; TUBE, RESERVE TANK
14
19104-750-800
SEE PART DETAILS - SUP; TUBE, RESERVE TANK
15
19105-PA0-010
MARK, RESERVE TANK
16
19106-PA0-020
JOINT, RESERVE TANK
17
19107-PA0-000
CLIP, RESERVE TANK JOINT
20
19511-679-003
CLIP, WATER HOSE
21
19511-750-801
BRACKET, RADIATOR (LOWER)
22
19512-883-000
COLLAR, FAN
24
50329-425-000
RUBBER B, BATTERY BOX
26
87128-750-800
MARK, FR. SCREEN
27
90401-ZA0-000
WASHER, PLAIN (6.5X15)
28
90658-750-800
CLIP, RADIATOR SHROUD
29
91307-PH7-660
Кольцо (13.5x1.4)
30
91404-750-800
CLIP, DOUBLE
31
93893-06012-08
Винт с шайбой (6x12)
32
94050-06080
Гайка (6mm)
33
94305-40301
PIN, SPRING (4X30)
34
95002-70000
Клипс
35
95701-06016-08
Болт (6x16)
