  5. HT3810K2 SA LAWN TRACTOR, JPN, VIN# HT3810-5200001 TO HT3810-5299999

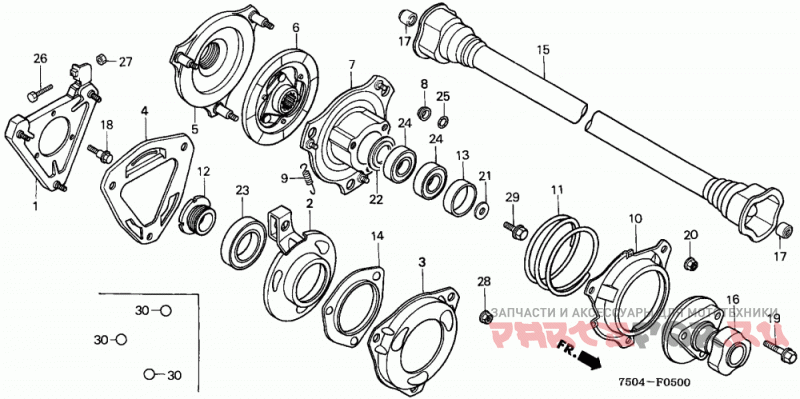

Clutch + Propeller Shaft

Honda HT3810K2 SA LAWN TRACTOR, JPN, VIN# HT3810-5200001 TO HT3810-5299999

Honda
#oem кодцена
4
22545-750-A00
PLATE, DUST SEAL
6
22560-750-003
Пластина
8
22572-750-000
BUSH, RR. CLUTCH
10
22581-750-A01
Крышка сцепления
12
22583-750-003
SEE PART DETAILS - SUP; NUT, BEARING
12
22583-750-023
SEE PART DETAILS - PRI; NUT, BEARING
16
40211-890-950
DAMPER A, PROPELLER SHAFT
17
40214-750-000
BUSH, CENTERING
18
90104-750-000
BOLT, SPECIAL (6X23)
19
90112-413-000
Болт (8х33)
20
90301-473-003
Гайка м6
21
90473-842-000
Шайба (8mm)
23
91001-750-023
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6908)
23
91001-750-003
SEE PART DETAILS - SUP; BEARING, RADIAL BALL (6908LLU)
23
91001-750-013
SEE PART DETAILS - SUP; BEARING, RADIAL BALL (6908LLU)
25
91305-422-000
Кольцо (9.8x2.4)
26
90106-750-000
Болт (6x25)
27
94001-06000-0S
SEE PART DETAILS - SUP; NUT, HEX. (6MM)
27
94001-06200-0S
SEE PART DETAILS - PRI; NUT, HEX. (6MM)
28
94050-06080
Гайка (6mm)
28
90352-122-003
NUT, DRIVEN SPROCKET (TOKAI)
29
95701-08014-08
SEE PART DETAILS - PRI; BOLT, FLANGE (8X14)
