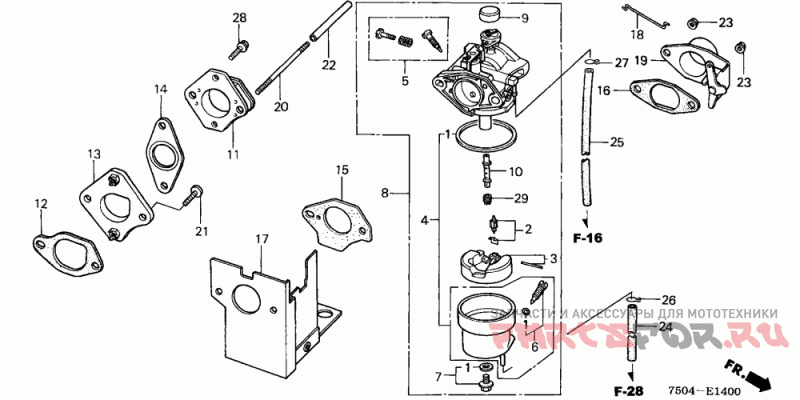

Carburetor (ht3810-k1-k2)

Honda HT3810K2 SA LAWN TRACTOR, JPN, VIN# HT3810-5200001 TO HT3810-5299999

Honda
#oem кодцена
2
16011-147-305
SEE PART DETAILS - SUP; VALVE SET, FLOAT
2
16011-881-741
SEE PART DETAILS - PRI; VALVE SET, FLOAT
3
16013-890-015
Поплавок
4
16015-890-952
Камера
5
16016-YA0-801
Винт
7
16028-ZE0-005
SEE PART DETAILS - SUP; SCREW SET B
9
16148-141-881
CAP, CHOKE LEVER DUST
10
16166-890-951
Главный жиклер
12
16213-890-306
GASKET, INSULATOR
13
16215-890-306
SEE PART DETAILS - PRI; PLATE, INSULATOR
13
16215-890-952
SEE PART DETAILS - SUP; PLATE, INSULATOR
15
16221-890-800
SEE PART DETAILS - PRI; GASKET, CARBURETOR
15
16221-890-306
SEE PART DETAILS - SUP; GASKET, CARBURETOR
16
16269-890-306
SEE PART DETAILS - SUP; GASKET, AIR CLEANER
16
16269-890-800
SEE PART DETAILS - PRI; GASKET, AIR CLEANER
20
90041-890-950
BOLT, STUD (6X85)
21
90091-890-950
SCREW (8X20)
22
91501-890-950
Манжета
23
94050-06080
Гайка (6mm)
24
95001-35003-60M
BULK HOSE, FUEL (3.5X3000)
25
95001-45003-60M
BULK HOSE, FUEL (4.5X3000)
26
95002-02070
Клипс
27
95002-02080
Трубка
28
95701-06016-00
Болт (6x16)
29
99101-124-0950
JET, MAIN (#95)
29
99101-124-0980
JET, MAIN (#98)
29
99101-124-1000
JET, MAIN (#100)
