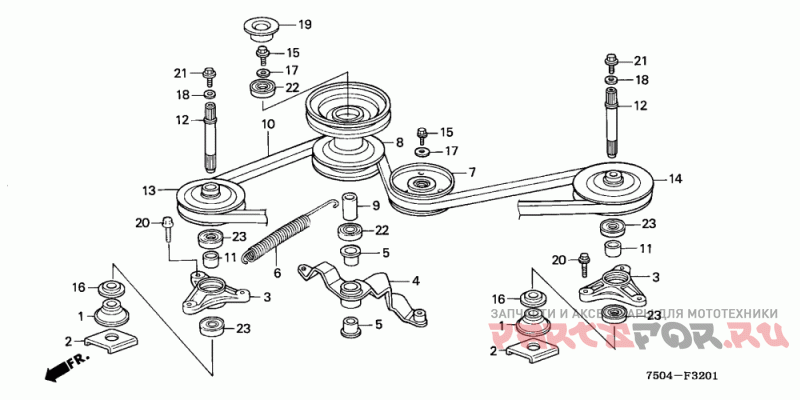

Blade Shaft + Driven Pulley (ht3810k2-3813k1)

Honda HT3810K2 SA LAWN TRACTOR, JPN, VIN# HT3810-5200001 TO HT3810-5299999

Blade Shaft + Driven Pulley (ht3810k2-3813k1)

#

oem код

название

цена

1

HOLDER, BLADE

HOLDER, BLADE

2

HOLDER, BLADE (B)

HOLDER, BLADE (B)

5

BUSH, TENSIONER ARM

BUSH, TENSIONER ARM

6

SPRING, TENSIONER ARM

SPRING, TENSIONER ARM

7

ROLLER, TENSIONER

ROLLER, TENSIONER

8

PULLEY KIT, DRIVEN

PULLEY KIT, DRIVEN

9

COLLAR, DRIVEN PULLEY

COLLAR, DRIVEN PULLEY

10

V-BELT, BLADE (LB-60)

V-BELT, BLADE (LB-60)

11

COLLAR, BLADE SHAFT

COLLAR, BLADE SHAFT

12

SHAFT, BLADE

SHAFT, BLADE

13

PULLEY, BLADE (115)

PULLEY, BLADE (115)

14

PULLEY, BLADE (109)

PULLEY, BLADE (109)

15

Болт

Болт

16

WASHER, BLADE HOLDER

WASHER, BLADE HOLDER

17

Шайба (8mm)

Шайба (8mm)

18

Шайба

Шайба

20

BOLT, FLANGE (10X28)

BOLT, FLANGE (10X28)

22

BEARING, RADIAL BALL (6203UU)

BEARING, RADIAL BALL (6203UU)

23

BEARING, RADIAL BALL (6204UU)

BEARING, RADIAL BALL (6204UU)
