  5. HT3810 SA LAWN TRACTOR, JPN, VIN# HT3810-5000034 TO HT3810-5099999

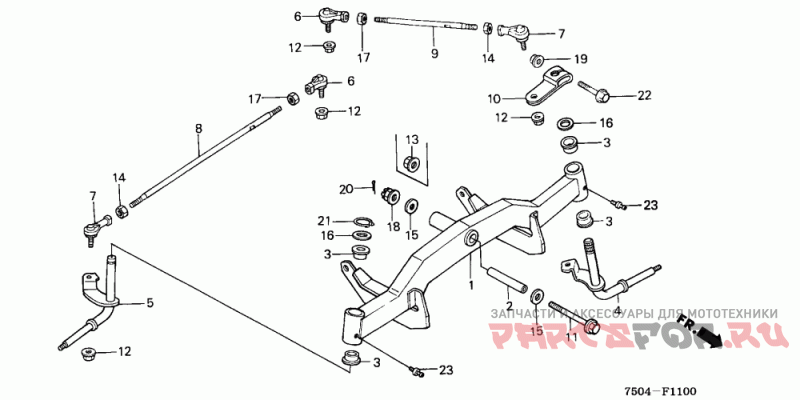

Front Axle + Tie Rod

Honda HT3810 SA LAWN TRACTOR, JPN, VIN# HT3810-5000034 TO HT3810-5099999

Honda
#oem кодцена
2
44121-750-000
COLLAR, FR. AXLE
6
53157-750-003
SEE PART DETAILS - SUP; JOINT, R. BALL
6
53157-758-003
SEE PART DETAILS - PRI; JOINT, R. BALL
7
53158-750-003
SEE PART DETAILS - SUP; JOINT, L. BALL
7
53158-758-003
SEE PART DETAILS - PRI; JOINT, L. BALL
8
53521-750-000
TIE ROD B
9
53522-750-000
TIE ROD A
10
53523-750-000
ARM, KNUCKLE
11
90128-KA4-003
BOLT, FLANGE (12X105)
12
90304-GA6-003
Гайка (10mm)
13
90306-KF0-003
Гайка (12mm)
14
90311-936-000
SEE PART DETAILS - SUP; NUT, HEX. (10MM)
14
90311-VM5-010
SEE PART DETAILS - PRI; NUT, HEX. (10MM)
15
90421-750-000
Шайба (12mm)
16
90452-413-000
WASHER, THRUST (20MM)
17
94001-10000-0S
Гайка (10mm)
18
94011-12280-0S
Гайка корончатая М12
19
94050-08080
Гайка
20
94201-30450
PIN, COTTER (3.0X45)
21
94510-20000
CIRCLIP (OUTER) (20MM)
22
95700-08050-08
SEE PART DETAILS - SUP; BOLT, FLANGE (8X50)
22
95701-08050-08
SEE PART DETAILS - PRI; BOLT, FLANGE (8X50)
23
96201-10000
FITTING, GREASE (A.76)
