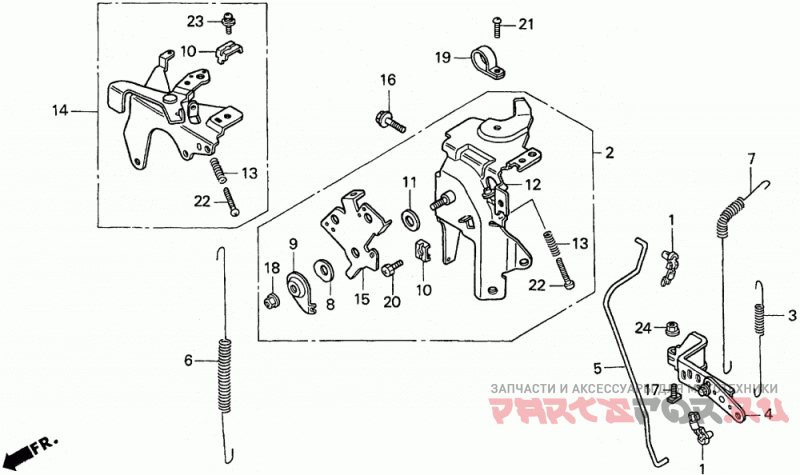

Honda HA4120 H48A LAWN TRACTOR, USA, VIN# MZCJ-6000001

Honda
#oem кодцена
1
16263-ZJ4-003
JOINT, ROD
2
16500-ZJ4-L00
CONTROL ASSY. (REMOTE)
3
16534-ZJ1-000
Пружина
4
16550-ZJ4-000
ARM, GOVERNOR
5
16555-ZJ4-000
ROD, GOVERNOR
6
16561-ZJ1-000
SPRING, GOVERNOR
7
16562-ZJ4-000
SPRING, THROTTLE RETURN
8
16574-ZE1-000
Пружина рычага
9
16575-ZH8-000
WASHER, CONTROL LEVER
10
16576-891-000
Держатель троса
11
16578-ZE1-000
SPACER, CONTROL LEVER
12
16580-ZJ4-000
BASE, CONTROL
13
16584-883-300
SPRING, CONTROL ADJUSTING
14
16590-ZJ4-810
STAY ASSY., CHOKE CONTROL (REMOTE)
15
16596-ZJ1-000
LEVER, WIRE
16
90013-883-000
BOLT, FLANGE (6X12) (CT200)
17
90015-ZE3-790
BOLT, GOVERNOR ARM
18
90114-SA0-000
Гайка (6MM)
19
90612-ZJ4-000
CLAMP (D17.5)
20
92301-05016-0A
BOLT, RECESSED (5X16)
21
93500-05012-0A
SEE PART DETAILS - PRI; SCREW, PAN (5X12)
22
93500-05025-0H
Винт (5x25)
23
93893-05016-00
SCREW-WASHER (5X16)
24
94050-06000
Гайка (6mm)
