Рама

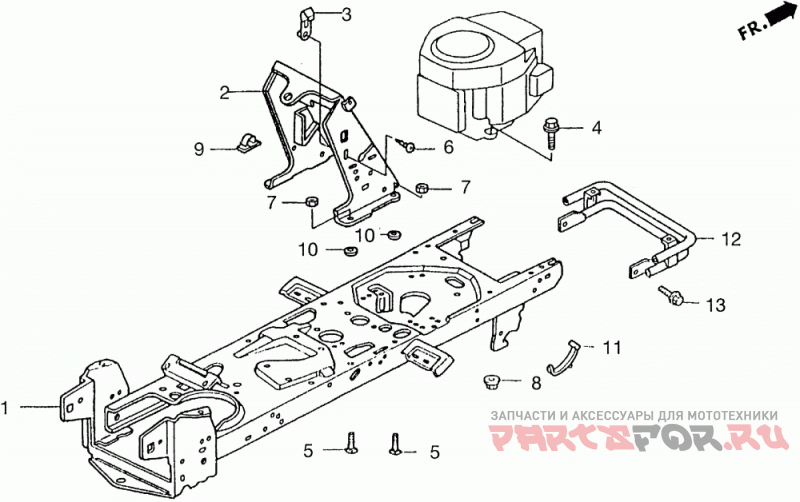

Honda HA4118 H38A LAWN TRACTOR, USA, VIN# MZCH-6000001
| # | oem код | название | цена |
|---|---|---|---|
1 | 50100-V09-A01 FRAME, MAIN | FRAME, MAIN | |
2 | 53210-V09-A01 Колонка рулевая | Колонка рулевая | |
3 | 60191-V09-A01 LOCK, HOOD | LOCK, HOOD | |
4 | 90103-V09-A01 Болт (8x45) | Болт (8x45) | |
5 | 90105-V09-A01 BOLT, CARRIAGE (8X16) | BOLT, CARRIAGE (8X16) | |
6 | 90107-V09-A01 SCREW B, TAPPING | SCREW B, TAPPING | |
7 | 90301-V09-A01 Гайка | Гайка | |
8 | 90302-V09-A01 NUT A, LOCK (8MM) | NUT A, LOCK (8MM) | |
9 | 90653-V09-A01 Клипс | Клипс | |
10 | 91151-V09-A01 RETAINER, FRAME | RETAINER, FRAME | |
11 | 32902-V09-A01 TIE, DRAIN HOSE | TIE, DRAIN HOSE | |
12 | 51120-V09-A01 GUARD, FR. | GUARD, FR. |
