  5. HA4118 H38A LAWN TRACTOR, USA, VIN# MZCH-6000001

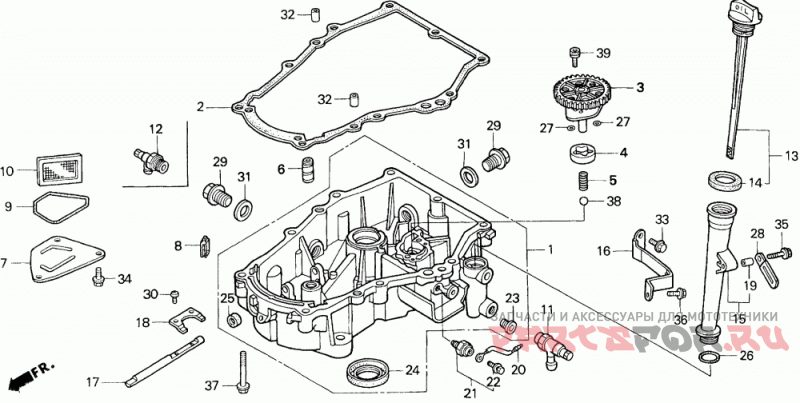

Маслянный поддон

Honda HA4118 H38A LAWN TRACTOR, USA, VIN# MZCH-6000001

Honda
#oem кодцена
1
11300-ZJ4-000
PAN ASSY., OIL
2
11381-ZJ1-000
GASKET, CASE COVER
3
15120-ZJ1-000
SEE PART DETAILS - SUP; COVER ASSY., OIL PUMP
4
15124-ZJ1-003
ROTOR, OIL PUMP (OUTER)
5
15232-ZJ1-000
SPRING, RELIEF VALVE
6
15235-ZJ4-000
SHAFT, OIL CONTROL
7
15334-ZJ4-000
PLATE, OIL FILTER
8
15335-ZE7-000
RUBBER, OIL RETURN
9
15339-ZJ4-000
O-RING, OIL PLATE
10
15427-ZG8-000
Экран
11
15558-ZJ1-010AH
VALVE, DRAIN (14X1.5)
12
15558-772-010
VALVE, OIL SHUT-OFF
13
15600-ZJ4-000
CAP ASSY., OIL FILLER
14
15625-ZE8-000
GASKET, OIL FILLER CAP
15
15630-ZE8-000
EXTENSION, OIL FILLER
16
15646-ZJ4-000
STAY, OIL FILLER EXTENSION
17
16541-ZJ1-000
SHAFT, GOVERNOR ARM
18
16542-ZJ1-000
FORK, GOVERNOR
19
17240-ZE6-000
COLLAR, EXTENSION
20
37201-ZJ4-000
Провод датчика давления масла
21
37240-ZG3-E01
Датчик давления масла
22
90002-ZG5-004
SCREW-WASHER (4X8)
23
90007-ZG8-300
BOLT, SEALING
24
91201-ZJ1-003
Сальник (38x58x11)
25
91202-HC0-003
OIL SEAL (10X20X5)
26
91301-ZE9-003
O-RING (22.5X2.2)
27
91302-MB6-830
O-RING (13X3.0)
28
91405-671-000
Зажим троса
29
92800-20000
BOLT, DRAIN PLUG (20MM)
30
93500-05010-0A
Винт (5x10)
31
94109-20000
WASHER, DRAIN PLUG (20MM)
32
94301-08140
PIN A, DOWEL (8X14)
33
95701-06012-00
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)
34
95701-06014-00
Болт (6x14)
35
95701-06028-00
Болт (6x28)
36
95701-08016-00
Болт (8x16)
37
95701-08050-00
Болт (8x50)
38
96211-12000
BALL, STEEL (#12) (3/8)
39
96600-06016-00
Болт (6x16)
