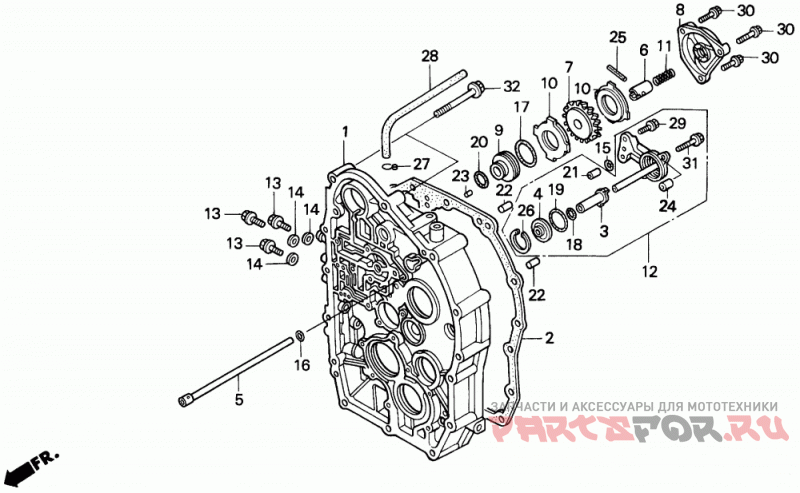

Transmission Control Case

Honda H6522 A4H COMPACT TRACTOR, JPN, VIN# TZAD-1000001 TO TZAD-1001869

Honda
#oem кодцена
1
21240-764-641
CASE, CONTROL
2
21243-764-650
GASKET, CONTROL CASE
3
22720-759-610
PIPE A, FEED
4
22723-759-610
GUIDE A, FEED PIPE
5
22745-759-000
PIPE, OIL SUPPLY
6
23257-759-611
SHAFT, NEUTRAL BRAKE
7
23551-759-610
GEAR, NEUTRAL BRAKE (19T)
8
27611-759-611
COVER, NEUTRAL BRAKE
9
27621-759-610
PISTON, NEUTRAL BRAKE
10
27622-759-610
PLATE, NEUTRAL BRAKE
11
27623-759-610
SPRING, NEUTRAL BRAKE
12
27930-764-640
HOLDER C ASSY., FEED PIPE
13
90024-612-000
Болт (8мм)
14
90471-580-000
Шайба (8mm)
15
91302-HB3-004
Кольцо (7.5x1.5)
16
91305-323-000
O-RING (5.8X1.9)
17
91314-GF4-004
O-RING (38.5X1.8)
18
91314-PC9-004
SEE PART DETAILS - PRI; O-RING (8.5X1.9) (NOK)
19
91316-PF4-003
O-RING (31X1.7) (ARAI)
20
91316-PJ2-004
O-RING (26X1.5) (NOK)
21
94301-06100
PIN A, DOWEL (6X10)
22
94302-08140
Направляющая (8х14)
23
94303-04065
Втулка
24
94301-08140
PIN A, DOWEL (8X14)
25
94305-30322
PIN, SPRING (3X32)
26
94520-32000
CIRCLIP (INNER) (32MM)
27
95002-02100
Зажим
28
95005-55003-20M
BULK HOSE, VACUUM (5.5X3000)
29
95701-06018-08
SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)
30
95701-06022-08
SEE PART DETAILS - PRI; BOLT, FLANGE (6X22)
31
95701-06028-08
Болт (6x28)
32
95701-10050-08
SEE PART DETAILS - PRI; BOLT, FLANGE (10X50)
