  5. H6522 A4H-A COMPACT TRACTOR, JPN, VIN# TZAD-1001870 TO TZAD-1099999

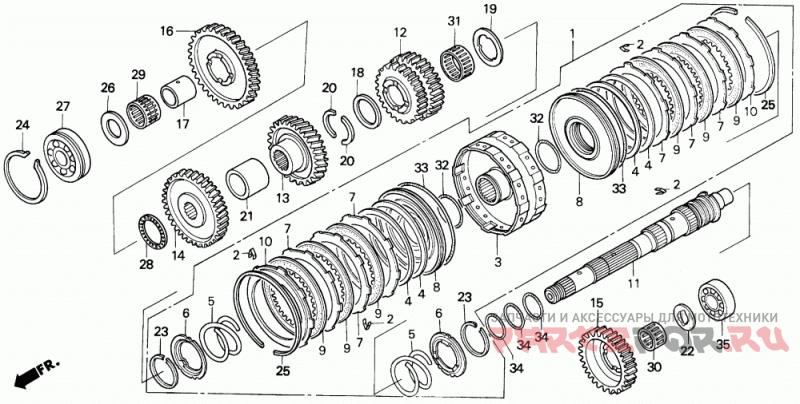

Mainshaft

Honda H6522 A4H-A COMPACT TRACTOR, JPN, VIN# TZAD-1001870 TO TZAD-1099999

Honda
#oem кодцена
1
22400-759-610
CLUTCH ASSY., FIRST & REVERSE
2
22405-759-610
SPRING, DISK SETTING
3
22470-759-610
GUIDE, FIRST & REVERSE CLUTCH
4
22537-759-610
SPRING, CLUTCH DISK
5
22403-764-640
SPRING, CLUTCH RETURN
6
22542-PA9-000
SEAT, CLUTCH SPRING
7
22543-PJ4-000
PLATE, CLUTCH (106)
8
22543-759-610
Поршень
9
22544-PN0-000
Диск фрикционный
10
22555-PA9-010
PLATE, CLUTCH END (3.5MM)
10
22566-PA9-010
PLATE, CLUTCH END (3.65MM)
10
22563-PA9-010
PLATE, CLUTCH END (2.75MM)
10
22564-PA9-010
PLATE, CLUTCH END (3.05MM)
10
22551-PA9-010
PLATE, CLUTCH END (2.3MM)
10
22552-PA9-010
PLATE, CLUTCH END (2.6MM)
10
22565-PA9-010
PLATE, CLUTCH END (3.35MM)
10
22561-PA9-010
PLATE, CLUTCH END (2.15MM)
10
22553-PA9-010
PLATE, CLUTCH END (2.9MM)
10
22554-PA9-010
PLATE, CLUTCH END (3.2MM)
10
22562-PA9-010
PLATE, CLUTCH END (2.45MM)
11
23210-759-610
MAINSHAFT
12
23421-764-640
GEAR, FIRST DRIVE (28/38T)
13
23422-764-640
GEAR, SECOND DRIVE (33T)
14
23423-764-640
GEAR, THIRD DRIVE (38T)
15
23424-759-610
GEAR, REVERSE DRIVE (16T-38T)
16
23566-764-640
GEAR, P.T.O. IDLE (41T-24T)
17
91553-764-641
COLLAR (26X32X27)
19
90411-PA9-010
WASHER, SPLINE (35X50X3.00)
19
90419-PA9-000
WASHER, SPLINE (35X50X3.30)
19
90414-PA9-010
WASHER, SPLINE (35X50X3.15)
19
90415-PA9-010
WASHER, SPLINE (35X50X3.20)
19
90420-PA9-000
WASHER, SPLINE (35X50X3.35)
19
90418-PA9-000
WASHER, SPLINE (35X50X3.25)
19
90421-PA9-000
WASHER, SPLINE (35X50X3.40)
19
90412-PA9-010
WASHER, SPLINE (35X50X3.05)
19
90413-PA9-010
WASHER, SPLINE (35X50X3.10)
20
90431-PC9-000
COTTER (28MM)
21
90514-PH0-000
COLLAR, DISTANCE (28X38X34.15)
21
90515-PH0-000
COLLAR, DISTANCE (28X38X34.20)
21
90518-PH0-000
COLLAR, DISTANCE (28X38X33.90)
21
90516-PH0-000
COLLAR, DISTANCE (28X38X34.25)
21
90519-PH0-000
COLLAR, DISTANCE (28X38X33.95)
21
90512-PH0-000
COLLAR, DISTANCE (28X38X34.05)
21
90513-PH0-000
COLLAR, DISTANCE (28X38X34.10)
21
90511-PH0-000
COLLAR, DISTANCE (28X38X34)
21
90517-PH0-000
COLLAR, DISTANCE (28X38X34.30)
22
90562-759-000
SHIM B, FINAL SHAFT (2.0MM)
23
90603-P24-A01
SEE PART DETAILS - SUP; CIRCLIP (OUTER) (40MM)
24
90603-PB6-000
RING, SNAP (62MM)
25
90605-PA9-000
Кольцо (114x1.8)
26
90833-759-610
WASHER, THRUST (25X45X4.0)
26
90839-759-610
WASHER, THRUST (25X45X4.6)
26
90840-759-610
WASHER, THRUST (25X45X4.7)
26
90836-759-610
WASHER, THRUST (25X45X4.3)
26
90838-759-610
WASHER, THRUST (25X45X4.5)
26
90837-759-610
WASHER, THRUST (25X45X4.4)
26
90841-759-610
WASHER, THRUST (25X45X4.8)
26
90842-759-610
WASHER, THRUST (25X45X4.9)
26
90834-759-610
WASHER, THRUST (25X45X4.1)
26
90831-759-610
WASHER, THRUST (25X45X3.8)
26
90832-759-610
WASHER, THRUST (25X45X3.9)
26
90835-759-610
WASHER, THRUST (25X45X4.2)
27
91004-PA9-003
BEARING, BALL (6305) (TOYO)
28
91018-P56-003
SEE PART DETAILS - PRI; NEEDLE, THRUST (32X44X2)
29
91021-415-005
BEARING, NEEDLE (32MM)
30
91007-HB3-013
BEARING, NEEDLE (22X27X20)
31
91103-PE9-008
BEARING, NEEDLE (32X37X18)
32
91302-PA9-003
O-RING (39.8X2.2) (ARAI)
33
91303-PA9-004
O-RING (100X2.2) (NOK)
34
91307-PA9-003
O-RING (31.2X1.9) (ARAI)
35
96100-62040-00
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204)
