  5. H6522 A4 COMPACT TRACTOR, JPN, VIN# TZAD-1000001 TO TZAD-1001869

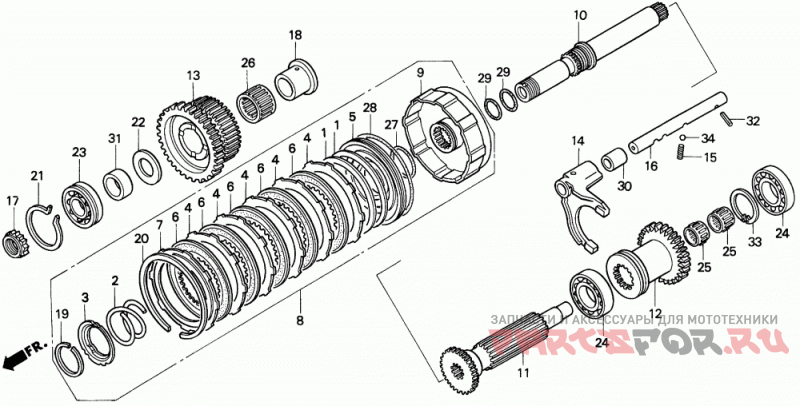

P.t.o. Countershaft

Honda H6522 A4 COMPACT TRACTOR, JPN, VIN# TZAD-1000001 TO TZAD-1001869

Honda
#oem кодцена
1
22537-759-610
SPRING, CLUTCH DISK
2
22541-PC9-000
SPRING, CLUTCH RETURN
2
22403-764-640
SPRING, CLUTCH RETURN
3
22542-PA9-000
SEAT, CLUTCH SPRING
4
22543-PJ4-000
PLATE, CLUTCH (106)
5
22543-759-610
Поршень
5
22543-764-640
Поршень
6
22544-PN0-000
Диск фрикционный
7
22562-PA9-010
PLATE, CLUTCH END (2.45MM)
7
22554-PA9-010
PLATE, CLUTCH END (3.2MM)
7
22553-PA9-010
PLATE, CLUTCH END (2.9MM)
7
22561-PA9-010
PLATE, CLUTCH END (2.15MM)
7
22552-PA9-010
PLATE, CLUTCH END (2.6MM)
7
22564-PA9-010
PLATE, CLUTCH END (3.05MM)
7
22565-PA9-010
PLATE, CLUTCH END (3.35MM)
7
22566-PA9-010
PLATE, CLUTCH END (3.65MM)
7
22563-PA9-010
PLATE, CLUTCH END (2.75MM)
7
22555-PA9-010
PLATE, CLUTCH END (3.5MM)
7
22551-PA9-010
PLATE, CLUTCH END (2.3MM)
8
22600-764-640
CLUTCH ASSY., P.T.O.
9
22601-764-640
GUIDE, P.T.O. CLUTCH
10
23190-764-640
COUNTERSHAFT A, P.T.O.
11
23193-764-640
COUNTERSHAFT, P.T.O. (C)
12
23551-764-640
GEAR, MIDDLE P.T.O. DRIVE
13
23581-764-640
GEAR, P.T.O. DRIVEN (38T-38T)
14
24441-764-640
FORK, P.T.O. SHIFT
15
24452-679-000
SPRING, BALL SETTING
16
24522-764-640
SHAFT, P.T.O. SHIFT
17
44332-752-000
Гайка (25mm)
18
90489-764-640
COLLAR, DISTANCE (25X32X30)
19
90603-P24-A01
SEE PART DETAILS - SUP; CIRCLIP (OUTER) (40MM)
20
90605-PA9-000
Кольцо (114x1.8)
21
90652-759-000
RING, SNAP (52MM)
22
90833-759-610
WASHER, THRUST (25X45X4.0)
23
91001-KT7-003
BEARING, BALL (6205C)
24
91003-733-701
BEARING, RADIAL BALL (60/32)
25
91058-764-640
BEARING, NEEDLE (17X21X10)
26
91104-634-008
BEARING, NEEDLE (32X37X27)
27
91302-PA9-003
O-RING (39.8X2.2) (ARAI)
28
91303-PA9-004
O-RING (100X2.2) (NOK)
29
91307-PA9-003
O-RING (31.2X1.9) (ARAI)
30
91554-764-640
COLLAR (14.5X19.1X21.8)
31
91556-764-640
COLLAR, DISTANCE (25MM)
32
94305-30182
PIN, SPRING (3X18)
33
94520-58000
CIRCLIP (INNER) (58MM)
34
96211-10000
BALL, STEEL (#10) (5/16)
