Middle P.t.o. Gear

Honda H6522 A4 COMPACT TRACTOR, JPN, VIN# TZAD-1000001 TO TZAD-1001869

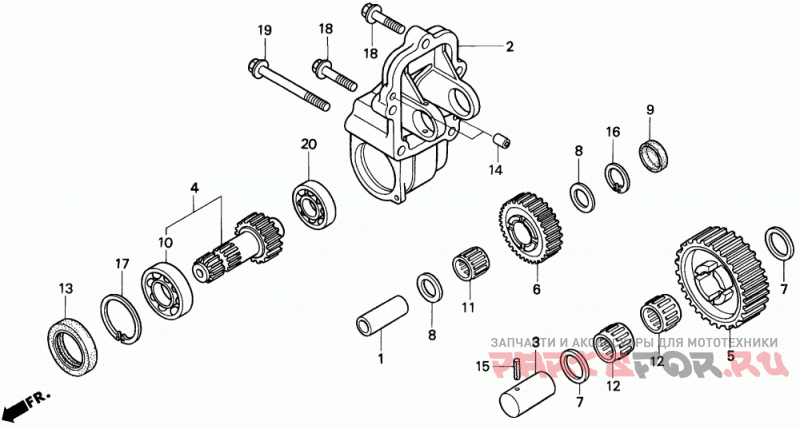

Middle P.t.o. Gear

#

oem код

название

цена

1

Палец поршневой

Палец поршневой

2

COVER, MIDDLE P.T.O.

COVER, MIDDLE P.T.O.

3

SHAFT, MIDDLE P.T.O. IDLE

SHAFT, MIDDLE P.T.O. IDLE

4

SHAFT, MIDDLE P.T.O.

SHAFT, MIDDLE P.T.O.

5

GEAR A, MIDDLE P.T.O. IDLE

GEAR A, MIDDLE P.T.O. IDLE

6

GEAR B, MIDDLE P.T.O. IDLE

GEAR B, MIDDLE P.T.O. IDLE

7

WASHER, THRUST (22X39X2)

WASHER, THRUST (22X39X2)

8

Шайба (18mm)

Шайба (18mm)

9

PLUG, SEALING (19X5)

PLUG, SEALING (19X5)

9

PLUG, SEALING (19X5)

PLUG, SEALING (19X5)

10

BEARING, RADIAL BALL (S6205)

BEARING, RADIAL BALL (S6205)

11

BEARING, NEEDLE (18X25X22)

BEARING, NEEDLE (18X25X22)

12

BEARING, NEEDLE (22X29X16)

BEARING, NEEDLE (22X29X16)

13

OIL SEAL (25X52X8)

OIL SEAL (25X52X8)

14

PIN C, DOWEL (8X14)

PIN C, DOWEL (8X14)

15

PIN, SPRING (5X36)

PIN, SPRING (5X36)

16

CIRCLIP (INNER) (18MM)

CIRCLIP (INNER) (18MM)

17

CIRCLIP (INNER) (52MM)

CIRCLIP (INNER) (52MM)

18

Болт (10x40)

Болт (10x40)

19

BOLT, FLANGE (10X85)

BOLT, FLANGE (10X85)

20

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204)

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204)
