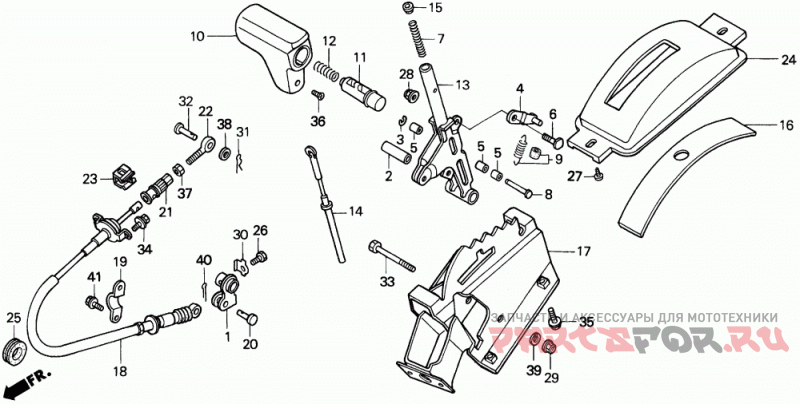

Рычаг переключения

Honda H6522 A2 COMPACT TRACTOR, JPN, VIN# TZAD-1000001 TO TZAD-1001869

Honda
#oem кодцена
1
24137-759-610
LEVER, CONTROL
2
28115-HB7-000
SHAFT A, STARTING IDLE
3
30158-700-010
E-CLIP (3MM)
4
54110-SB2-980
STOPPER, SELECT LEVER
5
54113-692-980
COLLAR, LOCK PIN
6
54115-SB2-980
BOLT, SELECTOR STOPPER
7
54117-759-610
SPRING, LOCK PIN
8
54119-689-981
PIN, LOCK
9
54120-759-610
SPRING ASSY., SELECT
10
54131-SF4-981
KNOB, SELECT LEVER
11
54132-759-611
KNOB, PUSH
12
54133-759-611
SPRING, PUSH KNOB
13
54135-759-610
LEVER, SELECT
14
54136-759-610
ROD, LOCK PIN
15
54142-SA5-980
Вкладыш направляющий
16
54146-759-610
COVER, SELECT LEVER
17
54210-759-610
BRACKET, CONTROL
18
54330-759-611
WIRE, CONTROL
19
54346-759-610
HOLDER, CONTROL WIRE
20
54347-679-980
PIN A, CONTROL ROD
21
54361-SE0-980
PIPE, CONTROL WIRE ADJUSTING
21
54361-759-610
PIPE, WIRE ADJUSTING
22
54362-759-610
END, ROD (6MM)
23
54363-689-981
PIN, CONTROL WIRE ADJUSTER
24
54380-759-610ZB
CONTROL *NH24* (ESCN)
25
63461-759-000
GROMMET, CABLE
26
90001-PA9-000
BOLT, HEX. (6MM)
27
90114-GB6-920
SCREW, RR. COVER
28
90114-SA0-000
Гайка (6MM)
29
90308-SA0-981
Гайка (6MM)
30
90433-639-000
WASHER, LOCK (6MM)
31
90705-SD2-931
PIN, SNAP (6MM)
32
90754-740-010
PIN, SIDE CLUTCH ARM
33
92201-06050-0H
BOLT, HEX. (6X50)
34
93402-06016-08
Болт с шайбой (м6x16)
35
93404-06012-07
SEE PART DETAILS - PRI; BOLT-WASHER (6X12)
36
93700-05008-0G
SCREW, OVAL (5X8)
37
94001-06080-0S
Гайка 6мм
38
94101-06800
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)
39
94111-06800
Шайба
40
94201-16250
PIN, COTTER (1.6X25)
41
95701-06014-08
Болт (6x14)
