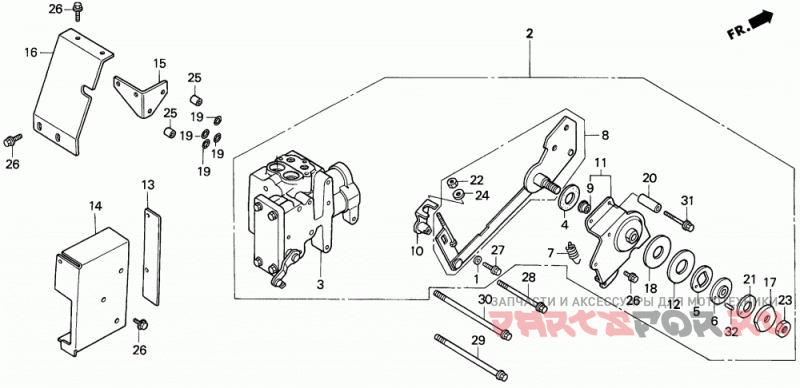

Position Control Valve

Honda H6522 A2-A COMPACT TRACTOR, JPN, VIN# TZAD-1001870 TO TZAD-1099999

Honda
#oem кодцена
2
56700-764-642
VALVE ASSY., MECHANICAL
4
57231-759-003
WASHER, FRICTION
5
57232-759-000
WASHER A, POSITION CONTROL ARM
6
57233-759-000
WASHER B, POSITION CONTROL ARM
7
57245-759-010
SPRING, POSITION CONTROL
8
57260-759-030
LINK, POSITION CONTROL
9
57264-759-003
BUSH (14X10)
10
57282-759-000
SUPPORT, POSITION CONTROL
11
57290-759-010
BASE, POSITION CONTROL LINK
12
57353-759-000
SPRING, CONED DISK (22MM)
13
57391-759-000
PLATE A, POSITION CONTROL
14
57392-759-010
PLATE B, POSITION CONTROL
15
57941-759-000
BRACKET, LINK COVER
16
57942-759-010
COVER, LINK
17
90331-759-000
NUT (10MMX6)
18
90458-KE8-000
WASHER, THRUST (22X45X0.8)
19
91365-759-003
SEE PART DETAILS - SUP; O-RING (15.8X2.4)
20
91571-759-000
COLLAR (6.1X13X28)
21
91865-759-003
WASHER, THRUST (16X30X1.5)
22
94002-06080-0S
Гайка 6мм
23
94002-10280-0S
Гайка (10mm)
24
94103-06800
Шайба (6мм)
25
94301-10160
PIN A, DOWEL (10X16)
26
95701-06012-08
Болт (6X12)
27
95701-06020-08
SEE PART DETAILS - PRI; BOLT, FLANGE (6X20)
28
95701-08080-08
Болт (8x80)
29
95701-08120-08
BOLT, FLANGE (8X120)
30
95701-08130-08
BOLT, FLANGE (8X130)
31
95801-06040-08
Болт (6x40)
32
96220-20080
ROLLER (2X8)
