  5. H5518 AC4-B MULTI-PURPOSE TRACTOR, JPN, VIN# TZAC-3600001

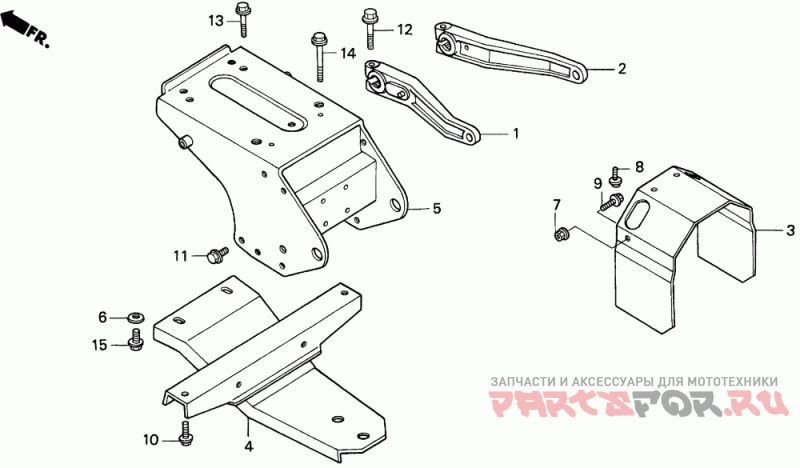

Rear Lift Arm

Honda H5518 AC4-B MULTI-PURPOSE TRACTOR, JPN, VIN# TZAC-3600001

Honda
#oem кодцена
1
50613-752-000
ARM, L. RR. LIFT
2
50619-752-000
ARM, R. RR. LIFT
3
50645-752-B30
SHIELD, RR. P.T.O. MASTER
4
50961-752-630
PLATE, DRAWING
5
57101-752-630
PLATE, HYDRAULIC CYLINDER
6
90504-SB0-000
Шайба (12mm)
7
94050-10080
Гайка(10mm)
8
95701-08014-08
SEE PART DETAILS - PRI; BOLT, FLANGE (8X14)
9
95701-10020-08
BOLT, FLANGE (10X20)
10
95701-10022-08
BOLT, FLANGE (10X22)
11
95701-10025-08
Болт (10x25)
12
95701-10040-08
Болт (10x40)
13
95701-10050-08
SEE PART DETAILS - PRI; BOLT, FLANGE (10X50)
14
95701-10070-08
BOLT, FLANGE (10X70)
15
95701-12030-00
BOLT, FLANGE (12X30)
