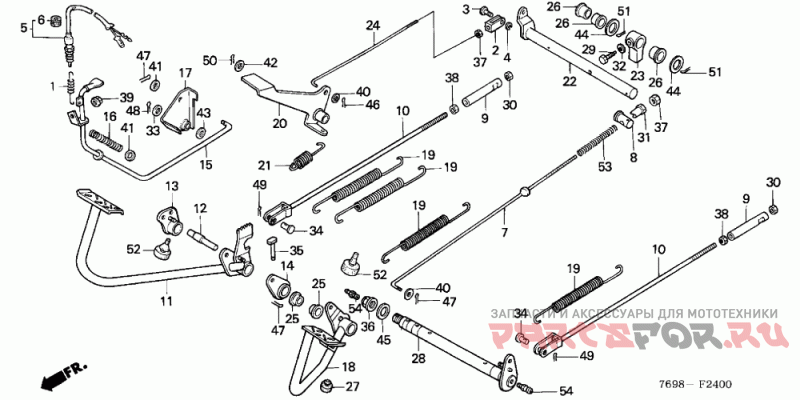

  5. H5518 A4-D MULTI-PURPOSE TRACTOR, JPN, VIN# TZAC-3500001 TO TZAC-3599999

Педали

Honda H5518 A4-D MULTI-PURPOSE TRACTOR, JPN, VIN# TZAC-3500001 TO TZAC-3599999

Honda
#oem кодцена
1
16561-ZE5-000
SPRING, GOVERNOR
2
24721-KE8-000
JOINT, PEDAL CHANGE
3
24723-KE8-000
PIN, CHANGE PEDAL
4
24725-KE8-000
E-CLIP (4MM)
5
35620-752-013
SWITCH ASSY., PARKING BRAKE
6
36043-657-000
GROMMET, WIRE HARNESS
7
43452-769-000
Шток
8
43453-MC4-000
Сустав
9
43453-752-000
JOINT (8MM)
10
43454-752-B30
ROD B, RR. BRAKE
11
46510-769-730
Педаль тормозная
12
46513-752-630
BAR, EQUALIZER
13
46530-752-630
ARM, R. EQUALIZER
14
46540-752-630
ARM, L. EQUALIZER
15
46550-752-B30
LEVER, PARKING BRAKE
16
46551-752-010
SPRING, PARKING BRAKE LEVER
17
46552-752-010
ARM, PARKING BRAKE STOPPER
18
46900-752-630
PEDAL, CLUTCH
19
46901-752-000
SPRING, CLUTCH PEDAL
20
47020-752-000
PEDAL, DIFFERENTIAL LOCK
21
47021-752-000
SPRING, DIFFERENTIAL LOCK
22
47040-752-010
ARM, DIFFERENTIAL LOCK
23
47041-752-010
ARM, DIFFERENTIAL LOCK
24
47046-752-C30
ROD, DIFFERENTIAL LOCK CONTROL
25
50131-752-010
BUSH, BRAKE PEDAL
26
50132-752-000
BUSH, DIFFERENTIAL LOCK PEDAL
27
50354-428-000
RUBBER B, STOPPER
28
50512-752-631
SHAFT, BRAKE
29
90029-611-010
SEE PART DETAILS - PRI; BOLT, SPECIAL (8X24)
30
90201-750-000
Гайка (8мм)
31
90305-752-000
Гайка
32
90412-679-000
WASHER, CONICAL SPRING (8MM)
34
90702-759-000
PIN (8X17.5)
35
90756-752-010
PIN, BRAKE SHAFT
36
91310-679-000
NUT, STEERING SHAFT
37
94001-06080-0S
Гайка 6мм
38
94001-08000-0S
Гайка (8мм)
39
94050-06080
Гайка (6mm)
40
94101-06800
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)
41
94101-08800
Шайба (8mm)
42
94101-12800
Шайба (12mm)
43
94102-12800
Шайба (12mm)
44
94102-14800
Шайба (14mm)
45
94102-18800
WASHER, PLAIN (18MM)
46
94201-16250
PIN, COTTER (1.6X25)
47
94201-20150
PIN, COTTER (2.0X15)
48
94201-20220
PIN, COTTER (2.0X22)
48
94201-20350
PIN, COTTER (2.0X35)
49
94201-25300
SEE PART DETAILS - PRI; PIN, COTTER (2.5MM)
52
95011-62000
RUBBER B, STAND STOPPER
53
95014-73100
SEE PART DETAILS - PRI; SPRING A, BRAKE ROD
54
96201-10000
FITTING, GREASE (A.76)
