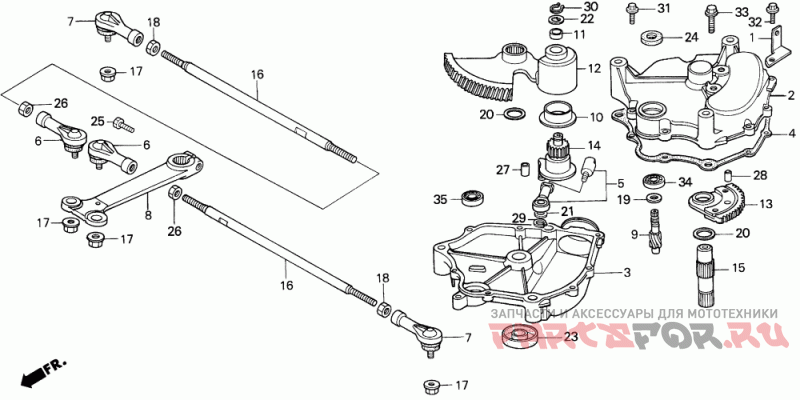

Steering Gear

Honda H5013 AC4-A MULTI-PURPOSE TRACTOR, JPN, VIN# FAHA-4100001 TO FAHA-4299999

Honda
#oem кодцена
1
32112-752-000
BRACKET, HARNESS CLIP (A)
2
53111-752-000
CASE, STEERING GEAR (UPPER)
3
53112-752-000
CASE, STEERING GEAR (LOWER)
4
53117-752-010
GASKET, STEERING CASE
5
53160-752-000
JOINT, ROD END
6
53167-752-003
JOINT, R. BALL (ER10)
7
53168-752-003
JOINT, L. BALL (ER10)
8
53421-752-B30
Рычаг соединительной тяги
9
53422-752-B30
PINION, STEERING
10
53423-752-003
BUSH, PINION HOLDER (A)
11
53424-752-003
BUSH, PINION HOLDER (B)
12
53427-752-B30
GEAR, STEERING
13
53428-752-000
GEAR, SUN (67T)
14
53429-752-010
GEAR, PLANETARY (19T)
15
53431-752-000
SHAFT, STEERING SECTOR
16
53521-752-B31
TIE ROD, FR.
17
90002-SA7-000
NUT, SELF-LOCK (10MM)
18
90303-752-000
NUT, L. HEX. (10MM)
19
90401-HB6-000
WASHER, THRUST (15MM)
20
90421-961-000
WASHER, THRUST (25MM)
21
90459-107-000
ШАЙБА, 12 MM
22
90501-752-000
WASHER (16.5X26X2)
23
91252-888-003
SEE PART DETAILS - SUP; OIL SEAL (25X38X7) (ARAI)
24
91272-733-931
OIL SEAL (15X28X7)
25
93301-10040-0H
BOLT, HEX. (10X40)
26
94001-10080-0S
Гайка (10mm)
27
94301-14200
Дюбель (14х20)
28
94303-10160
Палец (10x16)
29
94510-12000
CIRCLIP, OUTER (12MM)
30
94510-16000
CIRCLIP (OUTER) (16MM)
31
95701-06025-08
Болт (6x25)
32
95701-06028-07
Болт (6x28)
33
95701-10030-08
Болт (10x30)
34
96100-60020-10
BEARING, RADIAL BALL (6002UU)
35
96100-62010-10
BEARING, RADIAL BALL (6201)
