Front P.t.o. Clutch Lever для садовых тракторов Honda H5013 A4-C MULTI-PURPOSE TRACTOR, JPN, VIN# FAHA-3100001 TO FAHA-4099999 (Все)

Москва и регионы России

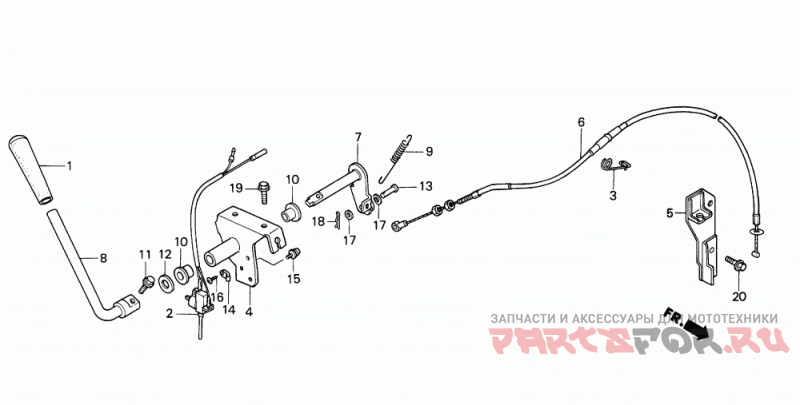

Front P.t.o. Clutch Lever

Honda H5013 A4-C MULTI-PURPOSE TRACTOR, JPN, VIN# FAHA-3100001 TO FAHA-4099999

Front P.t.o. Clutch Lever

#

oem код

название

цена

1

24406-763-A00ZA

GRIP, P.T.O. CLUTCH LEVER

GRIP, P.T.O. CLUTCH LEVER

2

SWITCH ASSY., FR. CLUTCH

SWITCH ASSY., FR. CLUTCH

3

Направляющая троса

Направляющая троса

4

BRACKET, P.T.O. CLUTCH

BRACKET, P.T.O. CLUTCH

5

HOLDER, P.T.O. CLUTCH WIRE

HOLDER, P.T.O. CLUTCH WIRE

6

CABLE, P.T.O. CLUTCH

CABLE, P.T.O. CLUTCH

7

ARM, P.T.O. CLUTCH LEVER

ARM, P.T.O. CLUTCH LEVER

8

SEE PART DETAILS - PRI; LEVER, P.T.O. CLUTCH

SEE PART DETAILS - PRI; LEVER, P.T.O. CLUTCH

9

SPRING, P.T.O. CLUTCH

SPRING, P.T.O. CLUTCH

10

BUSH, P.T.O. CLUTCH ARM

BUSH, P.T.O. CLUTCH ARM

11

Болт (6X12)

Болт (6X12)

12

Шайба (14мм)

Шайба (14мм)

13

PIN, AUXILIARY CHANGE LEVER JOINT

PIN, AUXILIARY CHANGE LEVER JOINT

14

CLIP, WIRE HARNESS (6.3MM)

CLIP, WIRE HARNESS (6.3MM)

15

SEE PART DETAILS - PRI; SCREW-WASHER (4X12)

SEE PART DETAILS - PRI; SCREW-WASHER (4X12)

16

SCREW, TAPPING (4X10)

SCREW, TAPPING (4X10)

17

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

18

PIN, LOCK (6MM)

PIN, LOCK (6MM)

19

Болт (8x16)

Болт (8x16)

20

Болт (8х20)

Болт (8х20)
