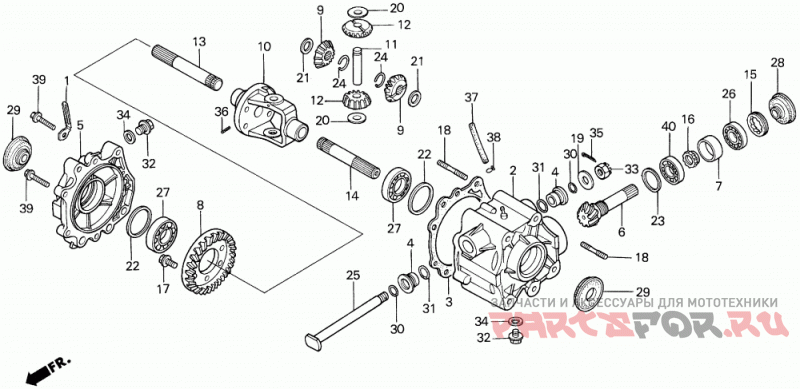

Front Differential Gear

Honda H5013 A4-C MULTI-PURPOSE TRACTOR, JPN, VIN# FAHA-3100001 TO FAHA-4099999

Honda
#oem кодцена
1
32170-GG2-000
CLIP A, WIRE HARNESS
2
41140-752-000
HOUSING, FR. DIFFERENTIAL
3
45176-769-750
GASKET, FR. DIFFERENTIAL HOUSING
4
41146-752-000
BUSH, CENTER PIN
5
41151-752-000
COVER, FR. DIFFERENTIAL
6
41211-752-000
SHAFT, FR. DIFFERENTIAL INPUT
7
41213-752-000
COLLAR, FR. DIFFERENTIAL INPUT SHAFT
8
41216-752-000
GEAR, FR. DIFFERENTIAL DRIVEN
9
41241-752-000
GEAR, DIFFERENTIAL (16T)
10
41316-752-000
CASE, FR. DIFFERENTIAL
11
41321-750-000
SHAFT, DIFFERENTIAL PINION
12
41341-750-000
PINION, DIFFERENTIAL (16T)
13
44311-752-000
SHAFT, R. FR. DRIVE
14
44321-752-000
DRIVESHAFT, L. FR.
15
44331-752-000
NUT, LOCK (55MM)
16
44332-752-000
Гайка (25mm)
17
90011-689-000
BOLT, HEX. (10MM)
18
90048-752-000
BOLT, STUD (10X45)
19
90454-752-000
WASHER, THRUST (14X30X2.5)
20
90523-750-000
WASHER C, DIFFERENTIAL PINION (16.2X30X0.9)
20
90524-750-000
WASHER D, DIFFERENTIAL PINION (16.2X30X1.0)
20
90521-750-000
WASHER A, DIFFERENTIAL PINION (16.2X30X0.7)
20
90522-750-000
WASHER B, DIFFERENTIAL PINION (16.2X30X0.8)
21
90525-752-000
ШАЙБА
22
90548-752-000
SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.65) (I)
22
90547-752-000
SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.6) (H)
22
90550-752-000
SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.75) (K)
22
90535-752-000
SHIM, FR. DIFFERENTIAL CASE (54X64.5X2.05) (Q)
22
90531-752-000
SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.85) (M)
22
90533-752-000
SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.95) (O)
22
90549-752-000
SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.7) (J)
22
90545-752-000
SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.5) (F)
22
90530-752-000
SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.8) (L)
22
90534-752-000
SHIM, FR. DIFFERENTIAL CASE (54X64.5X2.0) (P)
22
90546-752-000
SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.55) (G)
22
90532-752-000
SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.9) (N)
23
90584-752-000
SHIM, PINION (45.5X51.5X1.5) (D)
23
90582-752-000
SHIM, PINION (45.5X51.5X1.4) (B)
23
90599-752-000
SHIM, PINION (45.5X51.5X1.3) (S)
23
90585-752-000
SHIM, PINION (45.5X51.5X1.55) (E)
23
90583-752-000
SHIM, PINION (45.5X51.5X1.45) (C)
23
90586-752-000
SHIM, PINION (45.5X51.5X1.6) (F)
23
90581-752-000
SHIM, PINION (45.5X51.5X1.35) (A)
23
90598-752-000
SHIM, PINION (45.5X51.5X1.25) (R)
23
90587-752-000
SHIM, PINION (45.5X51.5X1.65) (G)
24
90601-752-000
CIRCLIP (OUTER) (22MM)
25
90702-752-000
PIN, CENTER
26
91002-HA5-003
SEE PART DETAILS - PRI; BEARING, SPECIAL (22) (KOYO)
27
91008-752-003
BEARING, RADIAL BALL (62/32)
28
91202-752-003
SEAL, WATER (33X58X12)
29
91206-752-005
OIL SEAL (22X52X11.5)
30
91256-383-721
O-RING (17.8X2.4) (SHOWA)
31
91305-425-003
O-RING (23.5X2.6)
32
92800-14000
BOLT, DRAIN PLUG (14MM)
33
94011-14080-0S
NUT, CASTLE (14MM)
34
94109-14000
WASHER, DRAIN PLUG (14MM)
35
94201-30450
Зажим (3.0x45)
36
94305-40320
PIN, SPRING (4X32)
37
95001-45003-50M
BULK HOSE, FUEL (4.5X3000) (4.5X200)
38
95002-02080
Трубка
39
95801-08032-08
Болт (8x32)
40
96100-62050-00
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)
