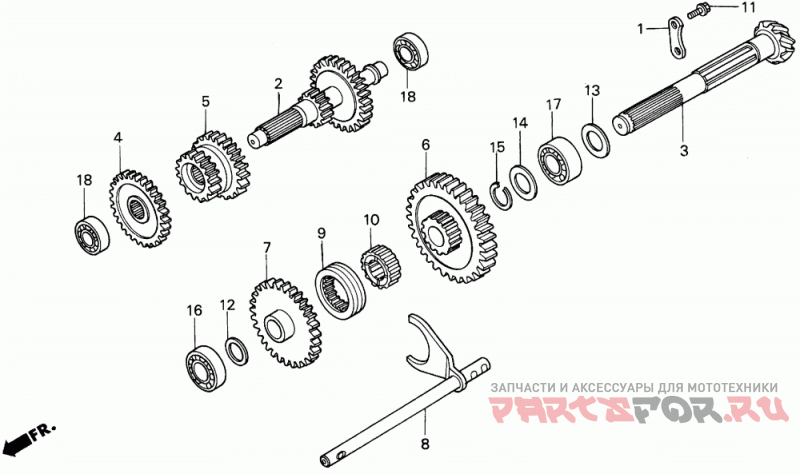

Lower Countershaft (1)

Honda H5013 A2-B MULTI-PURPOSE TRACTOR, JPN, VIN# FAHA-2100001 TO FAHA-3099999

Honda
#oem кодцена
1
21162-752-000
PLATE B, BEARING STOPPER
2
23231-752-000
COUNTERSHAFT (LOWER)
3
23251-752-B30
SHAFT, FINAL
4
23461-752-010
GEAR, COUNTERSHAFT THIRD (39T)
5
23471-752-010
GEAR, COUNTERSHAFT FOURTH (29T/17T)
6
23521-752-010
GEAR, AUXILIARY LOW DRIVEN (39T)
7
23526-752-010
GEAR, AUXILIARY DRIVEN HIGH (35T)
8
24140-752-620
FORK, AUXILIARY SHIFT
9
24145-752-010
SELECTOR, AUXILIARY
10
24146-752-000
HUB, AUXILIARY SELECTOR
11
90012-752-000
Болт (8х20)
12
90413-752-000
WASHER, THRUST (22X32X1.3) (D)
13
90434-752-000
SHIM (25X38X1.45) (E)
13
90435-752-000
SHIM (25X38X1.5) (F)
13
90436-752-000
SHIM (25X38X1.55) (G)
13
90431-752-000
SHIM (25X38X1.3) (B)
13
90433-752-000
SHIM (25X38X1.4) (D)
13
90430-752-000
SHIM (25X38X1.25) (A)
13
90437-752-000
SHIM (25X38X1.6) (H)
13
90438-752-000
SHIM (25X38X1.65) (I)
13
90439-752-000
SHIM (25X38X1.7) (J)
13
90440-752-000
SHIM (25X38X1.75) (K)
14
90466-752-000
SHIM, THRUST (25X38X1.55) (G)
14
90462-752-000
SHIM, THRUST (25X38X1.35) (C)
14
90463-752-000
SHIM, THRUST (25X38X1.4) (D)
14
90461-752-000
SHIM, THRUST (25X38X1.3) (B)
14
90467-752-000
SHIM, THRUST (25X38X1.6) (H)
14
90468-752-000
SHIM, THRUST (25X38X1.65) (I)
14
90469-752-000
SHIM, THRUST (25X38X1.7) (J)
14
90470-752-000
SHIM, THRUST (25X38X1.75) (K)
14
90464-752-000
SHIM, THRUST (25X38X1.45) (E)
14
90465-752-000
SHIM, THRUST (25X38X1.5) (F)
15
90612-752-000
CIRCLIP (OUTER) (25MM)
16
91002-750-003
BEARING, RADIAL BALL (62/22)
17
91002-752-003
BEARING, RADIAL BALL (25X52X20.6)
18
96100-62030-00
BEARING, RADIAL BALL (6203)
