  5. H4514H HSA-C LAWN TRACTOR, JPN, VIN# MZAS-3000001 TO MZAS-3999999

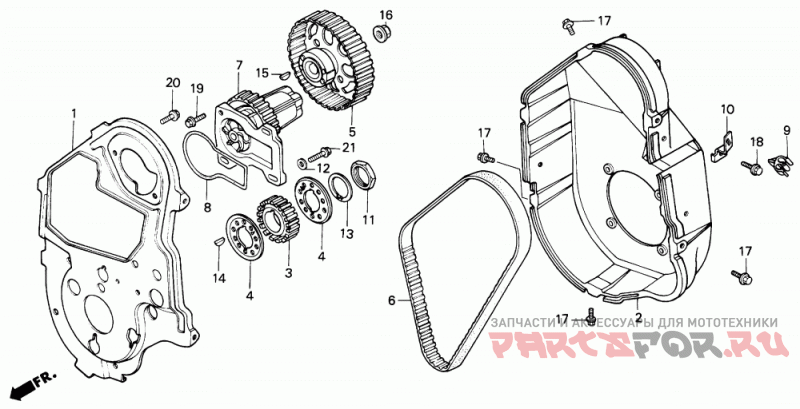

Water Pump + Timing Belt (h4514h)

Honda H4514H HSA-C LAWN TRACTOR, JPN, VIN# MZAS-3000001 TO MZAS-3999999

Honda
#oem кодцена
1
11810-ZA0-700
COVER B, TIMING BELT
2
11820-ZA0-700
COVER A, TIMING BELT
3
14311-ZA0-005
PULLEY, TIMING
4
14312-ZA0-000
FLANGE, TIMING PULLEY
5
14320-ZA0-701
PULLEY, CAMSHAFT
6
14400-ZA0-003
BELT, TIMING
7
19200-ZA0-010
Помпа водяная
8
19222-ZA0-004
Кольцо водяного насоса
9
38685-SA5-673
CLIP, RECEIVER PIPE
10
38686-ZA0-700
BRACKET, IGNITION WIRE CLIP
11
90202-ZA0-000
NUT, LOCK (30MM)
12
90401-ZA0-000
WASHER, PLAIN (6.5X15)
13
90451-ZA0-000
Шайба (30mm)
14
90741-ZE2-000
KEY, SPECIAL WOODRUFF (25X18)
15
90741-921-000
SEE PART DETAILS - SUP; KEY, CAM PULLEY
16
94050-10080
Гайка(10mm)
17
95701-06010-08
Болт (6x10)
17
95700-06010-08
Болт (6x10)
18
95700-06012-08
Болт (6X12)
18
95701-06012-08
Болт (6X12)
19
95701-06022-08
SEE PART DETAILS - PRI; BOLT, FLANGE (6X22)
20
96001-06012-00
Болт (6X12)
21
96001-06022-00
Болт (6x22)
