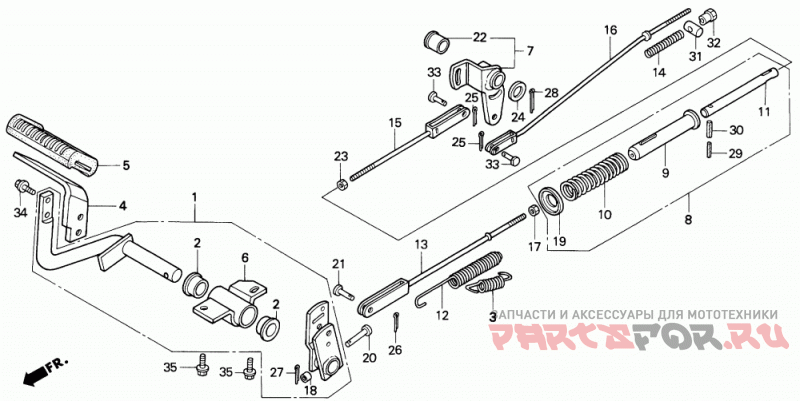

Brake Pedal (h4514h, H4518h)

Honda H4514H HSA-C LAWN TRACTOR, JPN, VIN# MZAS-3000001 TO MZAS-3999999

Honda
#oem кодцена
1
46501-758-000
ARM ASSY., BRAKE PEDAL
2
46504-758-000
BUSH, BRAKE PEDAL
3
46514-758-000
Пружина
4
46515-758-000
BRACKET, BRAKE PEDAL
5
46545-758-000
RUBBER, BRAKE PEDAL
6
46592-758-010
PIVOT, BRAKE PEDAL
7
47205-758-000
ARM ASSY., BRAKE ROD
8
47240-758-010
PIPE ASSY., FOOT BRAKE
9
47241-763-A00
Трубка тормозная
10
47251-758-000
SPRING, FOOT BRAKE LOAD
11
47253-751-000
SHAFT, SPRING SETTING
12
47255-758-020
SPRING, BRAKE DAMPER
13
47261-758-020
ROD A, RR. BRAKE
14
47262-750-000
Пружина
15
47265-758-000
ROD B, RR. BRAKE
16
47266-758-010
ROD, RR. BRAKE (C)
17
90201-700-000
NUT, GOVERNOR ARM FIXING
18
90503-758-000
COLLAR (10X5)
19
90526-751-700
WASHER, BRAKE SPRING SETTING
20
90756-752-010
PIN, BRAKE SHAFT
21
90771-750-A00
PIN (5.3X17)
22
91556-763-D01
SEE PART DETAILS - PRI; BUSH (16X18X25)
23
94001-06080-0S
Гайка 6мм
24
94102-16800
Шайба (16mm)
25
94201-16120
PIN, COTTER (1.6X12)
26
94201-20120
PIN, COTTER (2.0X12)
27
94201-20150
PIN, COTTER (2.0X15)
28
94201-30450
PIN, COTTER (3.0X45)
29
94305-30282
PIN, SPRING (3X28)
30
94305-50282
PIN, SPRING (5X28)
31
95015-31001
Разъем
32
95015-41000
NUT A, BRAKE ROD ADJUSTING
33
95015-52000
PIN B, BRAKE ROD JOINT
34
95701-08018-07
Болт (8x18)
35
95701-10018-08
BOLT, FLANGE (10X18)
