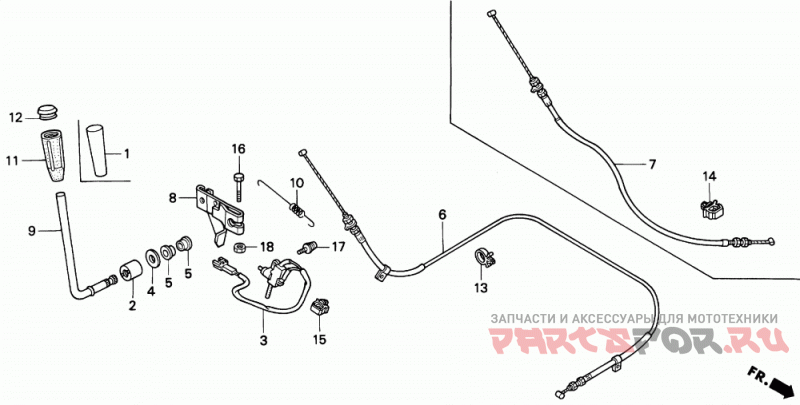

P.t.o. Clutch Lever

Honda H4013 SAN-C LAWN TRACTOR, JPN, VIN# MZAR-3000001 TO MZAR-3999999

P.t.o. Clutch Lever

#

oem код

название

цена

1

24406-763-A00ZA

GRIP, P.T.O. CLUTCH LEVER

GRIP, P.T.O. CLUTCH LEVER

2

SEAL, IGNITION TERMINAL

SEAL, IGNITION TERMINAL

3

SWITCH ASSY., P.T.O. CLUTCH

SWITCH ASSY., P.T.O. CLUTCH

4

PLATE, STOPPER

PLATE, STOPPER

5

BUSH A, CHANGE LEVER

BUSH A, CHANGE LEVER

7

CABLE, P.T.O. CLUTCH

CABLE, P.T.O. CLUTCH

8

ARM, P.T.O. CLUTCH LEVER

ARM, P.T.O. CLUTCH LEVER

9

LEVER, P.T.O. CLUTCH

LEVER, P.T.O. CLUTCH

10

SPRING, P.T.O. CLUTCH

SPRING, P.T.O. CLUTCH

14

CLIP, HARNESS (15MM) (BLUE)

CLIP, HARNESS (15MM) (BLUE)

15

Зажим

Зажим

16

BOLT, HEX. (6X32)

BOLT, HEX. (6X32)

17

SEE PART DETAILS - PRI; SCREW-WASHER (4X12)

SEE PART DETAILS - PRI; SCREW-WASHER (4X12)

18

Гайка 6мм

Гайка 6мм
