  5. H4013 SAN-C LAWN TRACTOR, JPN, VIN# MZAR-3000001 TO MZAR-3999999

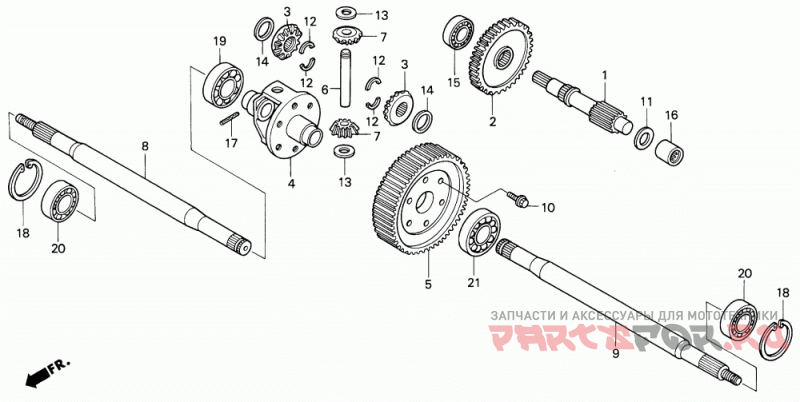

Differential Gear (h4013)

Honda H4013 SAN-C LAWN TRACTOR, JPN, VIN# MZAR-3000001 TO MZAR-3999999

Honda
#oem кодцена
1
23214-758-000
Промежуточный вал
2
23612-758-010
GEAR, COUNTERSHAFT DRIVEN
3
41241-758-000
GEAR, DIFFERENTIAL
4
41311-758-000
CASE, DIFFERENTIAL GEAR
5
41312-758-000
GEAR, FINAL DRIVEN (59T)
6
41321-751-000
SHAFT, DIFFERENTIAL
8
42311-758-701
SHAFT, R. AXLE
9
42321-758-701
SHAFT, L. AXLE
10
90113-750-000
BOLT, SPECIAL (10X20)
11
90455-751-000
WASHER, THRUST (18MM)
12
90502-751-700
COTTER (15MM)
13
90521-751-000
WASHER A, DIFFERENTIAL PINION
13
90523-751-000
WASHER C, DIFFERENTIAL PINION
13
90522-751-000
WASHER B, DIFFERENTIAL PINION
13
90524-751-000
WASHER D, DIFFERENTIAL PINION
14
90525-752-000
ШАЙБА
15
91003-751-701
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (60/22)
16
91051-758-003
BEARING, NEEDLE (18X25X17)
17
94305-40322
PIN, SPRING (4X32)
18
94520-52000
CIRCLIP (INNER) (52MM)
19
96100-60060-00
BEARING, RADIAL BALL (6006)
20
96100-62050-00
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)
21
96100-62060-00
BEARING, RADIAL BALL (6206)
