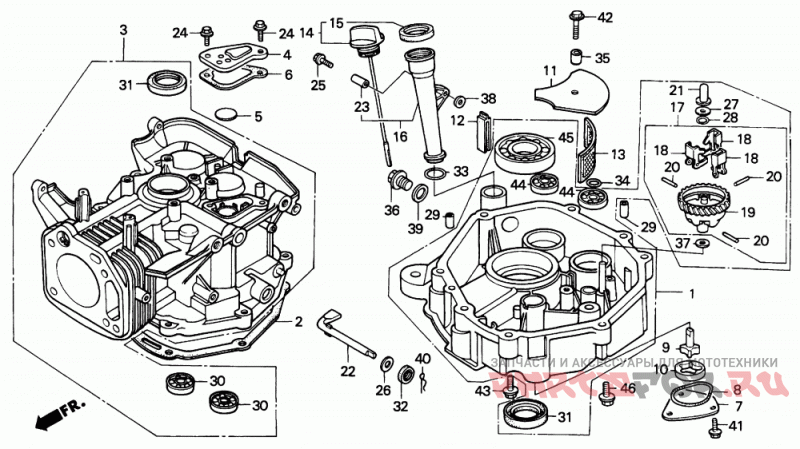

Cylinder (h4013)

Honda H4013 SAN-C LAWN TRACTOR, JPN, VIN# MZAR-3000001 TO MZAR-3999999

Honda
#oem кодцена
1
11300-ZF5-020
PAN ASSY., OIL
1
11300-ZF5-W22
PAN ASSY., OIL
1
11300-ZF5-010
PAN ASSY., OIL
2
11381-ZE9-801
SEE PART DETAILS - PRI; GASKET, OIL PAN
2
11381-ZE9-800
SEE PART DETAILS - SUP; GASKET, OIL PAN
2
11381-ZE9-306
SEE PART DETAILS - SUP; GASKET, OIL PAN
3
12000-ZF5-040
SEE PART DETAILS - PRI; CYLINDER ASSY.
4
12370-ZF5-000
CAP, BREATHER CHAMBER
5
12372-ZE2-300
VALVE, BREATHER
6
12373-ZE8-000
GASKET, BREATHER CAP
7
15130-ZE8-000
Крышка масляного насоса
8
15131-ZE9-003
O-RING, PUMP COVER
9
15330-ZE8-000
ROTOR (INNER)
10
15332-891-003
ROTOR, OIL PUMP (OUTER)
11
15334-ZE8-010
PLATE, OIL FILTER
12
15335-ZE9-000
RUBBER, OIL RETURN
13
15421-ZE9-003
Экран
14
15600-ZF5-000
CAP ASSY., OIL FILLER
15
15625-ZE8-000
GASKET, OIL FILLER CAP
16
15630-ZE8-000
EXTENSION, OIL FILLER
17
16510-ZE3-000
GOVERNOR ASSY.
17
16510-ZE8-000
GOVERNOR ASSY.
18
16511-ZE8-000
WEIGHT, GOVERNOR
19
16512-ZE3-000
HOLDER, GOVERNOR WEIGHT
19
16512-ZE8-000
HOLDER, GOVERNOR WEIGHT
20
16513-ZE2-000
PIN, GOVERNOR WEIGHT
21
16531-Z0A-000
SEE PART DETAILS - PRI; SLIDER, GOVERNOR
21
16531-ZE2-000
SEE PART DETAILS - SUP; SLIDER, GOVERNOR
22
16541-ZE8-010
SHAFT, GOVERNOR ARM
23
17240-ZE6-000
COLLAR, EXTENSION
24
90013-883-000
BOLT, FLANGE (6X12) (CT200)
25
90014-ZE6-000
Болт (6x35)
26
90406-VM6-000
WASHER, THRUST (8.1MM)
27
90473-147-000
SEE PART DETAILS - PRI; WASHER (6X16)
28
90602-ZE1-000
SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER
29
90701-HC4-000
Палец (8x12)
30
91001-ZF5-003
BEARING, RADIAL BALL (6202)
31
91201-ZE3-004
OIL SEAL (35X52X8)
32
91201-ZE9-003
SEE PART DETAILS - PRI; OIL SEAL (8X14X5)
32
91203-952-771
SEE PART DETAILS - SUP; OIL SEAL (8X14X5)
33
91301-ZE9-003
O-RING (22.5X2.2)
34
91302-ZE9-003
SEE PART DETAILS - PRI; O-RING (11.8X2.4)
35
91501-ZF5-000
COLLAR, OIL FILTER SETTING
36
92800-20000
BOLT, DRAIN PLUG (20MM)
37
94101-06800
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)
38
94103-06700
Шайба (6мм)
39
94109-20000
WASHER, DRAIN PLUG (20MM)
40
94251-10000
PIN, LOCK (10MM)
40
94251-08000
PIN, LOCK (8MM)
41
95701-06012-00
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)
42
95701-06025-00
SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)
43
95701-08040-08
Болт (8x40)
44
96100-62020-00
BEARING, RADIAL BALL (6202)
45
96100-62073-00
BEARING, RADIAL BALL (6207)
45
96100-62070-00
BEARING, RADIAL BALL (6207)
46
95701-08060-08
BOLT, FLANGE (8X60)
