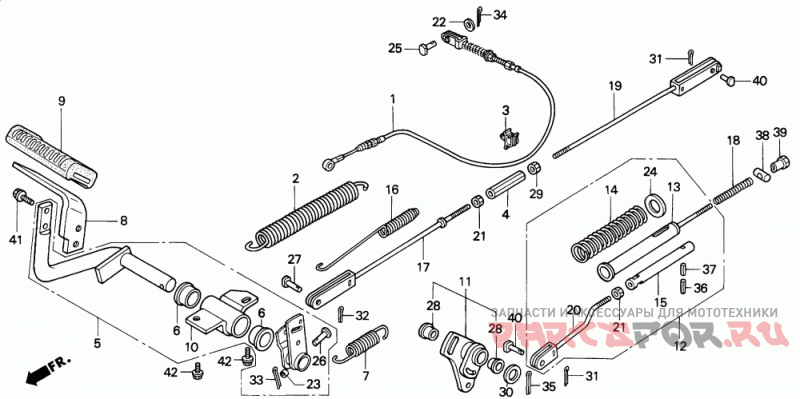

Brake Pedal (h4013)

Honda H4013 SAN-C LAWN TRACTOR, JPN, VIN# MZAR-3000001 TO MZAR-3999999

Honda
#oem кодцена
1
24140-758-702
Трос, сцепления
2
24147-758-700
Пружина
3
32171-GJ1-003
Зажим
4
43453-758-000
JOINT (6MM)
5
46501-758-700
ARM ASSY., BRAKE PEDAL
6
46504-758-000
BUSH, BRAKE PEDAL
7
46514-758-000
Пружина
8
46515-758-000
BRACKET, BRAKE PEDAL
9
46545-758-000
RUBBER, BRAKE PEDAL
10
46592-758-010
PIVOT, BRAKE PEDAL
11
47205-758-700
ARM ASSY., BRAKE ROD
12
47240-758-701
PIPE ASSY., FOOT BRAKE
13
47241-758-701
PIPE, FOOT BRAKE SPRING
14
47251-758-701
SPRING, FOOT BRAKE LOAD
15
47253-750-000
SHAFT, SPRING SET
16
47255-758-700
SPRING, BRAKE DAMPER
17
47261-758-701
ROD A, RR. BRAKE
18
47262-750-000
Пружина
19
47265-758-701
ROD B, RR. BRAKE
20
47266-758-701
ROD, RR. BRAKE (C)
21
90201-700-000
NUT, GOVERNOR ARM FIXING
22
90451-KAF-000
Шайба (8mm)
23
90503-758-000
COLLAR (10X5)
24
90526-751-700
WASHER, BRAKE SPRING SETTING
25
90702-759-000
PIN (8X17.5)
26
90756-752-010
PIN, BRAKE SHAFT
27
90771-750-A00
PIN (5.3X17)
28
91556-758-000
BUSH (16X18X15)
29
94001-06080-0S
Гайка 6мм
30
94102-16800
Шайба (16mm)
31
94201-16120
PIN, COTTER (1.6X12)
32
94201-20120
PIN, COTTER (2.0X12)
33
94201-20150
PIN, COTTER (2.0X15)
34
94201-20350
PIN, COTTER (2.0X35)
34
94201-20220
PIN, COTTER (2.0X22)
35
94201-30450
PIN, COTTER (3.0X45)
36
94305-30282
PIN, SPRING (3X28)
37
94305-50282
PIN, SPRING (5X28)
38
95015-31001
Разъем
39
95015-41000
NUT A, BRAKE ROD ADJUSTING
40
95015-52000
PIN B, BRAKE ROD JOINT
41
95701-08018-07
Болт (8x18)
42
95701-10018-08
BOLT, FLANGE (10X18)
