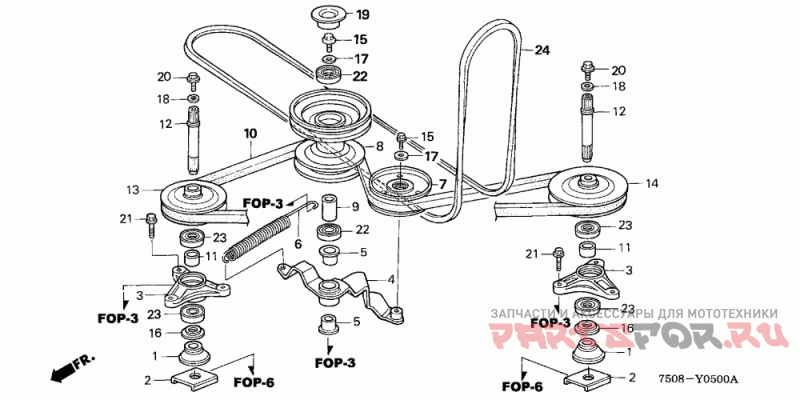

Blade Shaft (cd3813)

Honda CD3813 A MOWER DECK, JPN, VIN# RAG-0000001

Honda
#oem кодцена
1
72620-751-701
SEE PART DETAILS - PRI; HOLDER, BLADE
2
72625-751-700
HOLDER, BLADE (B)
5
76121-750-000
BUSH, TENSIONER ARM
6
76122-750-000
SPRING, TENSIONER ARM
7
76130-750-000
ROLLER, TENSIONER
8
06762-750-305
SEE PART DETAILS - PRI; PULLEY KIT, DRIVEN
9
76141-750-000
COLLAR, DRIVEN PULLEY
10
76181-750-A01
SEE PART DETAILS - PRI; V-BELT, BLADE (LB-60)
11
76213-751-700
COLLAR, BLADE SHAFT
12
76214-751-700
SHAFT, BLADE
13
76220-750-A00
PULLEY, BLADE (115)
14
76221-750-A00
PULLEY, BLADE (109)
15
90110-VA4-000
SEE PART DETAILS - PRI; BOLT, WHEEL
16
90409-751-700
SEE PART DETAILS - PRI; WASHER, BLADE HOLDER
17
90430-657-000
Шайба (8mm)
18
90521-427-770
Шайба
19
90872-752-801
PLUG, SEALING (40X6)
20
95701-10016-08
SEE PART DETAILS - PRI; BOLT, FLANGE (10X16)
21
95701-10028-08
SEE PART DETAILS - PRI; BOLT, FLANGE (10X28)
22
96150-62030-10
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6203UU)
23
96150-62040-10
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204UU)
24
76182-750-003
SEE PART DETAILS - PRI; V-BELT, DECK
