  5. BK4542 BA BLOWER KIT - REQUIRED FOR GRASS CATCHER FOR 42" CUTTER DECK, USA, VIN# BK1-1000001

Side Blower

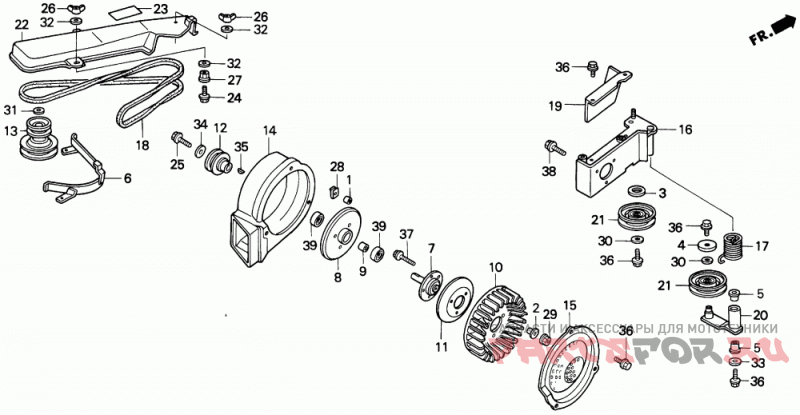

Honda BK4542 BA BLOWER KIT - REQUIRED FOR GRASS CATCHER FOR 42" CUTTER DECK, USA, VIN# BK1-1000001

Honda
#oem кодцена
1
16573-ZE6-300
COLLAR, CONTROL
3
22467-758-R20
GUARD, TENSION ROLLER
4
22469-758-U00
GUARD, TENSIONER ROLLER
5
24141-751-000
BUSH (15X19X18)
6
76183-758-U00
STOPPER, BELT
7
81410-758-U00
SHAFT, BLOWER IMPELLER
9
81416-750-L20
COLLAR, BLOWER BEARING
10
81417-750-L20
IMPELLER, BLOWER
11
81418-758-U00
PLATE, IMPELLER
12
81420-758-U00
PULLEY, BLOWER
13
81430-758-U00
PULLEY, BLOWER DRIVE (42")
14
81441-758-U00
HOUSING, SIDE BLOWER
15
81446-758-U00
COVER, BLOWER HOUSING
16
81510-758-U00
BRACKET, SIDE BLOWER MOUNTING
17
81515-758-U00
SPRING, TENSIONER ARM
18
81516-758-U00
V-BELT, BLOWER
19
81517-758-U00
COVER, SIDE BLOWER BELT (A)
20
81521-758-U00
ARM, TENSIONER
21
81540-758-U00
PULLEY, IDLER
23
87311-758-U00
LABEL, BELT COVER (A)
24
90102-758-U00
BOLT, FLANGE (0.25 INCH)
25
90194-567-010
BOLT, WHEEL RIM
26
90301-758-U00
WINGNUT (0.25 INCH)
27
90302-758-U00
NUT, FLANGE (0.25 INCH)
28
90303-758-U00
Гайка
29
90114-SA0-000
Гайка (6MM)
30
90474-704-000
WASHER (6X17)
31
90501-758-U00
Шайба (10mm)
32
90502-758-U00
WASHER, PLAIN (0.25 INCH)
33
94103-06000
Шайба (6мм)
34
94103-08800
Шайба (8mm)
35
94401-16120
KEY, WOODRUFF (16X12)
36
95701-06012-07
Болт (6X12)
37
95701-06022-07
Болт (6x22)
38
95701-08016-07
Болт (8x16)
39
96150-62020-10
BEARING, RADIAL BALL (6202UU)
