  5. BAG-3813 BA GRASS CATCHER FOR HT3810K1-K2 AND HT3813-K1, JPN, VIN# GB3-0000001

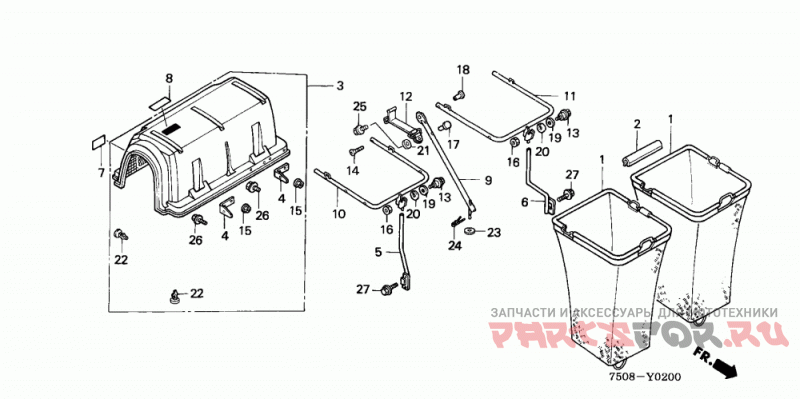

Hopper (bag-3813)

Honda BAG-3813 BA GRASS CATCHER FOR HT3810K1-K2 AND HT3813-K1, JPN, VIN# GB3-0000001

Honda
#oem кодцена
1
81310-758-S00
SEE PART DETAILS - PRI; BAG, GRASS
1
81100-751-801
SEE PART DETAILS - SUP; BAG ASSY., GRASS
1
81100-751-802
SEE PART DETAILS - SUP; BAG ASSY., GRASS (ENGLISH)
2
81342-751-800
CLIP, GRASS BAG TUBE
3
82000-751-800
HOPPER ASSY., TOP
4
82117-751-800
HINGE, HOPPER TOP
7
82126-751-900
LABEL, HOPPER TOP
7
82126-751-800
LABEL, HOPPER TOP (E)
8
82145-751-800
LABEL, HOPPER TOP ROOF (E)
8
82145-751-900
LABEL, HOPPER TOP ROOF
9
82222-750-920
BRACE, SUPPORT
10
82305-751-800
STAY, R. SUPPORT
11
82306-751-800
STAY, L. SUPPORT
12
82314-751-800
SEE PART DETAILS - PRI; BAND ASSY., HOPPER TOP
13
90106-751-010
SEE PART DETAILS - PRI; BOLT, HINGE (10MM)
14
90126-KA4-000
SCREW, FLAT (8X45)
15
90301-428-900
Гайка (6mm)
15
94050-06070
SEE PART DETAILS - PRI; NUT, FLANGE (6MM)
16
90304-GA6-003
Гайка (10mm)
17
90306-751-800
NUT, PIPE (6MM)
18
90307-751-800
NUT, PIPE (8MM)
19
90417-HA0-000
WASHER, THRUST (14MM)
20
90432-751-800
WASHER, SPRING (14MM)
21
72998-5003
SEE PART DETAILS - PRI; WASHER (3/8")
22
90667-751-801
CLIP, SCREEN
23
94103-10000
WASHER, FLAT (10MM)
24
94252-10000
SEE PART DETAILS - PRI; PIN, LOCK (10MM)
25
95701-06016-00
SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)
26
95701-06018-07
SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)
27
95701-08020-07
SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)
27
95700-08020-07
SEE PART DETAILS - SUP; BOLT, FLANGE (8X20)
