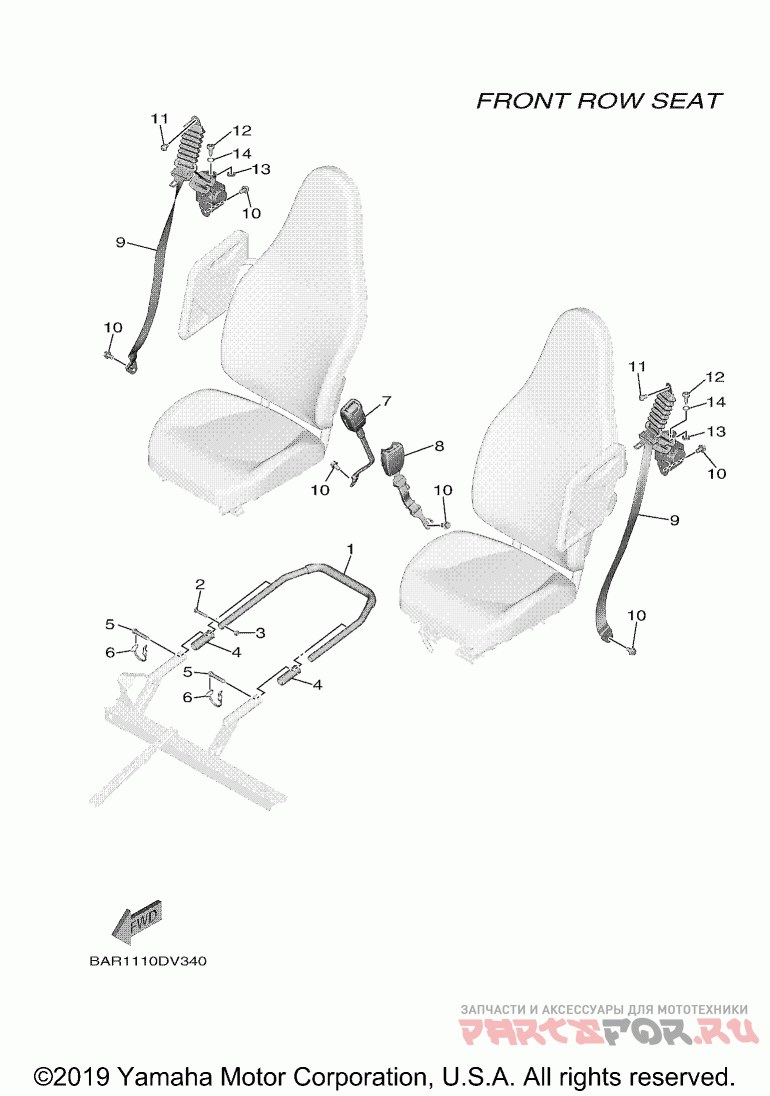

Сиденье 2
Yamaha WOLVERINE X4 (YXF85WPBLL)
| # | oem код | название | цена |
|---|---|---|---|
1 | 2MB-F470J-00-00 ASSIST GRIP ASSY., 1 | ASSIST GRIP ASSY., 1 | |
10 | 95812-12020-00 Болт | Болт | |
11 | 90111-12002-00 BOLT,HEX. SOCKET BUTTON | BOLT,HEX. SOCKET BUTTON | |
12 | 16B-F3394-01-00 Болт | Болт | |
13 | 90201-11801-00 Шайба | Шайба | |
14 | 93210-14637-00 Уплотнительное кольцо | Уплотнительное кольцо | |
2 | 90101-06824-00 Болт | Болт | |
3 | 95612-06100-00 Гайка | Гайка | |
4 | 1XD-F467K-00-00 BUSH, CAP | BUSH, CAP | |
5 | 1XD-F5926-00-00 Болт | Болт | |
6 | 1XD-F311F-00-00 SNAP, PIN | SNAP, PIN | |
7 | BAR-F470R-01-00 FR. BELT RECEIVER ASSY | FR. BELT RECEIVER ASSY | |
8 | B5F-F470R-10-00 FR. BELT RECEIVER ASSY | FR. BELT RECEIVER ASSY | |
9 | B5F-F470L-00-00 FR. SEAT BELT ASSY 1 | FR. SEAT BELT ASSY 1 |
