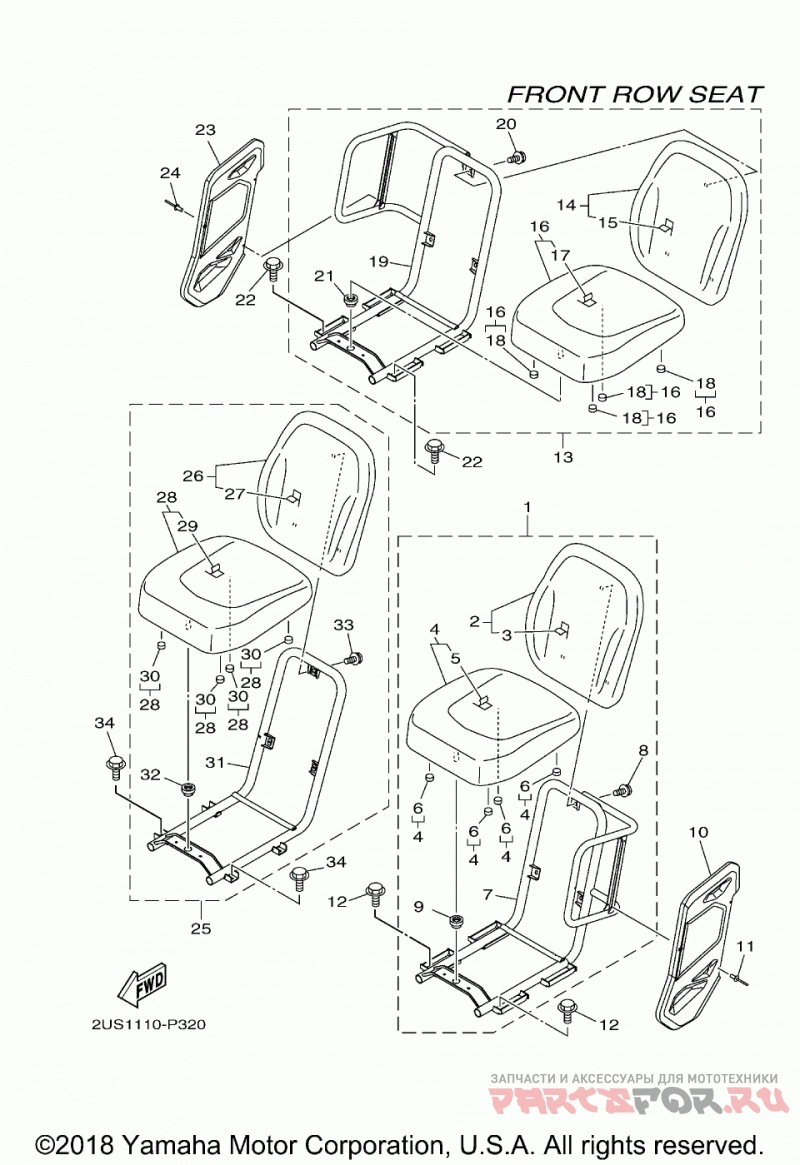

Сиденье

Yamaha VIKING VI EPS (YXC70VPXJR/YXC70VPXJG)

Yamaha
#oem кодцена
1
2PG-F7498-00-00
Опорная поверхность
2
1XD-F4790-00-00
. .SEAT BACK ASSY
3
1XD-F4711-00-00
. . ..COVER, SINGLE SEAT
4
1XD-F4700-00-00
. .SEAT ASSY
5
1XD-F4731-00-00
. . ..COVER, SEAT
6
1XD-F4723-00-00
. . .DAMPER, SEAT
7
1XD-F473C-00-00
. .FRAME, SEAT 1
8
2PG-F4739-00-00
. BOLT, SEAT FITTING
9
1XD-F4742-00-00
. GROMMET
10
1XD-F475X-01-00
COVER,2
11
90267-489U9-00
Заклёпка
12
95811-08012-00
Болт
13
2PG-F7499-00-00
SEAT 2
14
1XD-F4790-00-00
. .SEAT BACK ASSY
15
1XD-F4711-00-00
. . ..COVER, SINGLE SEAT
16
1XD-F4700-00-00
. .SEAT ASSY
17
1XD-F4731-00-00
. . ..COVER, SEAT
18
1XD-F4723-00-00
. . .DAMPER, SEAT
19
1XD-F473D-00-00
. .FRAME, SEAT 2
20
2PG-F4739-00-00
. BOLT, SEAT FITTING
21
1XD-F4742-00-00
. GROMMET
22
95811-08012-00
Болт
23
1XD-F475X-01-00
COVER,2
24
90267-489U9-00
Заклёпка
25
2PG-F749A-00-00
SEAT 3
26
1XD-F4790-00-00
. .SEAT BACK ASSY
27
1XD-F4711-00-00
. . ..COVER, SINGLE SEAT
28
1XD-F4700-00-00
. .SEAT ASSY
29
1XD-F4731-00-00
. . ..COVER, SEAT
30
1XD-F4723-00-00
. . .DAMPER, SEAT
31
1XD-F473Y-00-00
. .FRAME, SEAT 3
32
1XD-F4742-00-00
. GROMMET
33
2PG-F4739-00-00
. BOLT, SEAT FITTING
34
95811-08012-00
Болт
