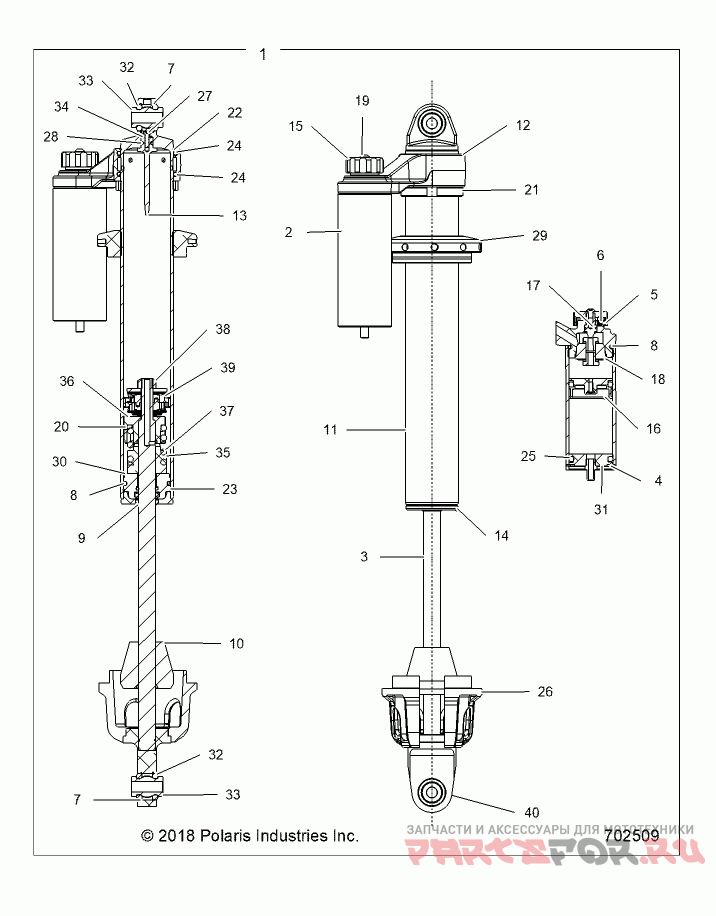

Suspension, front shock internals - z21nae99ac / ak / bc / bk / k99ag / ap / bg / bp (702509)

Polaris Ranger RZR XP 1000 (Z21NAE99AC/AK/BC/BK/K99AG/AP/BG/BP)

Polaris Ranger
#oem кодцена
1
7045256
SHOCK-FRONT,RZRXP,PIGGYBK,LH [INCL. ALL]
1
7045257
SHOCK-FRONT,RZRXP,PIGGYBK,RH [INCL. ALL]
10
1800859
Bump Stop, MCU, 2.00Dia x 1.75L (ISC 140174-N)
11
1800860
BODY, MONOTUBE CO, 2.0 x 14.285L Hard CLEAR
12
1800921
BRIDGE, WIDE 2.0 WER ADJUSTER (CLEAR)
14
1800794
CAP, WIPER 2.0 PRESS IN (CLEAR ANODIZE)
15
1800418
KNOB,CLICKER BLK (1000604)
16
1800739
IFP PISTON ASM 1.750, W- BLEED
17
1800758
ASM-CLICKER STUD 404613
19
1800357
SCREW, 10X5/8 BTN SS (500603)
2
1800392
RES BODY, 2.0
21
1800868
JAMB NUT, 2.0IN ACME (CLEAR)
22
1800862
RING-RETAINING 1520119
23
1800795
RETAINING RING WIRE 0.0625 X 1.750ID
24
1800863
O-RING, 2-226 1600018
25
1800184
O-RING, 2-324
26
5633421
Spring Retainer Supplied by Polaris
27
1800843
#8-32 X .500 LOW HEAD SCREW
28
1800864
O-RING, 2-108 1600026
29
1800865
SPRING NUT-2
30
1800869
ASM. SEAL HEAD, 2.0, PRESS- IN, STD SEALS
31
1800755
ASM. END CAP 2in (CLEAR)
32
1800810
O-RING 2-312 1000312
33
1800809
BEARING-HKFS8T-10MM 1600130
36
1800858
DROOP SPACER W NEG SPRING
39
1800516
2 PC PISTON ASM INTERLOCKING (WITH OUT VALVING)
4
1800159
SNAP RING, 1.75
40
1800600
EXT SHAFTLOOP .625THD 1IN BEARING
5
1800127
BALL, DETENT 3/16
6
1800128
Spring, D-Tent
7
1800041
RING, SNAP, END BEARING
8
1800030
O-Ring, Body Loop
9
1800034
WIPER, 5/8
