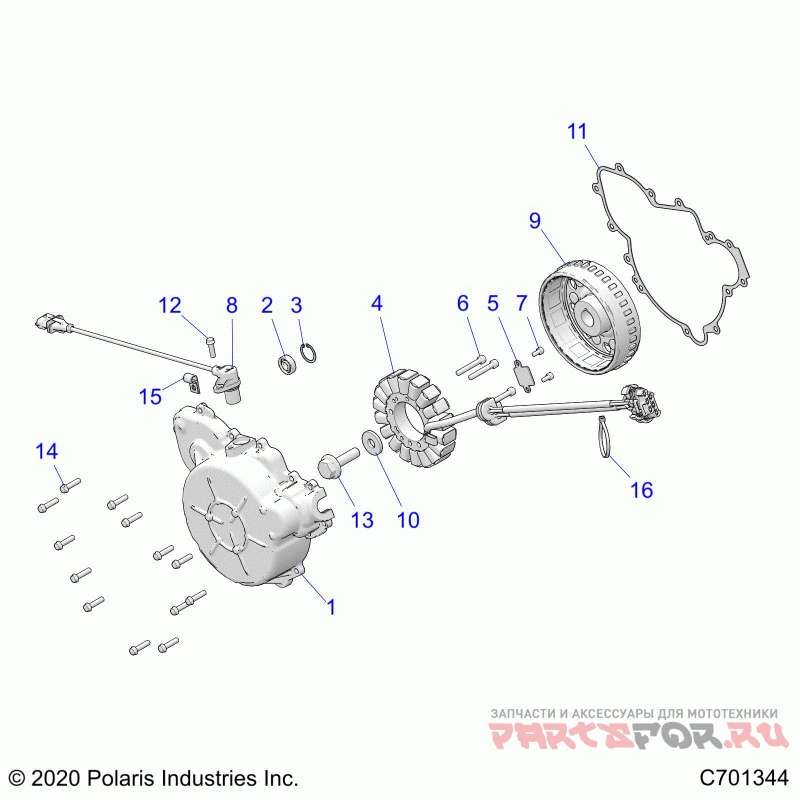

Engine, stator and flywheel - z21nae99ac / ak / bc / bk / k99ag / ap / bg / bp (c701344)

Polaris Ranger RZR XP 1000 (Z21NAE99AC/AK/BC/BK/K99AG/AP/BG/BP)

Polaris Ranger
#oem кодцена
1
1204518
ASM., IGNITION COVER, STARTER BEARING [INCL. 2,3]
10
7556885
WSHR-32X12X4,HARD
11
5814160
GASKET, COVER, IGNITION
12
7518576
SCREW-HXFL-M6X1.0X20 8.8 ZY3
13
7520178
SCREW-HXFL-M12X1.25X43 12.9
14
7519297
SCREW-HXFLG,M6X1.0X25,10.9
15
7080683
CLAMP-HOSE,.312DIA,VINYL COAT
16
7080761
STRAP, PANDUIT, 14 INCH
2
3514717
BEARING-BALL,9X24X7
3
7710654
RING-SNAP,DIN472,24X1.2MM
4
4015340
Статор
5
5255473
BRACKET, RETAINER, WIRE
6
7510005
SCR-M6X1.0X40,HX/SOC/CP-Y/D
7
7517847
SCREW-M5X0.8X10 SOC/CP-D
8
2411719
SENDOR, CRANK POSITIOIN
9
4013969
FLYWHEEL [E99BC][E99BK][E99AK][E99AC]
9
4015496
FLYWHEEL-660W [K99BG][K99BP][K99AP][K99AG]
