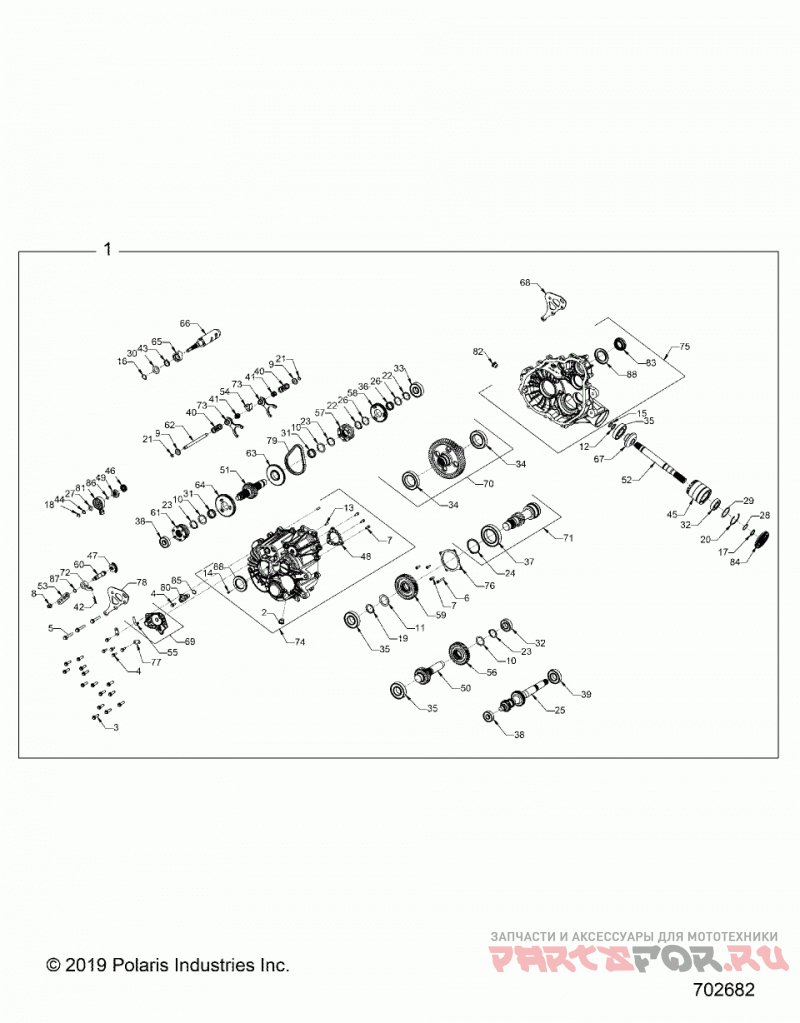

Drive train, main gearcase internals - z21nae99ac / ak / bc / bk / k99ag / ap / bg / bp (702682)

Polaris Ranger RZR XP 1000 (Z21NAE99AC/AK/BC/BK/K99AG/AP/BG/BP)

Polaris Ranger
#oem кодцена
1
1334346
ASM-GEARCASE,COMPLETE [INCL. ALL]
10
3235211
WASHER-32.3X42X1.5(115288)
11
3235212
WASHER-35.6X57X1.5(115289)
12
3236410
WASHER, 22.5 X 30 X 1.5
13
3234330
PIN, DOWEL, 6 X 20
14
7043746
PIN, SPRING, SLOTTED 6 X 12
15
7710434
RING, RETAINING BASIC EXTERNAL
16
3233045
RING, RETAINING BASIC, EXTERNAL 0.75
17
3233106
RING, RETAINING BASIC, EXTERNAL 0.984
18
3233834
RING, RETAINING BASIC EXTERNAL
19
3233364
RING, RETAINING, SHAFT, DIA. 1.375
2
3234756
PLUG, SOCKET HEAD W/MAGNET
20
3234269
RING, RETAINING BASIC, INTERNAL 2.047
21
3234090
RING, RETAINING BASIC, EXTERNAL 0.428
22
3234205
RING, RETAINING,
23
3235214
RING, RETAINING BASIC, EXTERNAL MSR-32
24
3235216
RING-RETAIN,VSH-237(130298)
25
3235763
SHAFT, BOSS, LOWER, INPUT
26
3233378
WASHER, THRUST, 1.187 X 1.500 X .0600
27
3234642
WASHER, THRUST, 0.446 X 0.88 X 0.025
28
3234272
SHIM, 1.180 OD X 0.995 ID
29
3234273
SHIM, 2.040 OD X 1.63 ID
3
3234898
SCREW, HEX FLANGE HEAD, M8 X 1.25 X 30
30
3235883
SPACER, 19.4 X 34.0 X 2.0
31
3233014
BEARING, NEEDLE, CAGE ASSY
32
3233019
BEARING, BALL 6205 C3 25 X 52 X 15
33
3233020
BEARING, BALL, 6305 C3, 25 X 62 X 17
34
3233268
BEARING, BALL 6010 C3 50 X 80 X 10
35
3234065
BEARING, BALL 6207 C3 35MMX72MMX17MM
36
3233384
BEARING-NEEDLE,30X35X13-CAGED
37
3235218
BEARING, BALL, 6012 C3 60 X 95 X 18
38
3234652
BEARING, BALL 6303, 17 X 47 X 14
39
3235496
BEARING, BALL 6206RSH2 STD 30 X 62 X 16
4
3235206
SCREW, HEX FLANGE HEAD, M6 X 1 X 20
40
3234078
SPRING, COMPRESSION, .92 O.D. X 2.000
41
3234089
SPRING, COMPRESSION, 0.46 I.D. X 0.73
42
3234578
SPRING, COMPRESSION 0.36 O.D. X 1.125
43
3235885
Пружина
44
3235327
WASHER-SPRING,210393
45
3234278
TUBE, SNORKEL MACHINED
46
3233839
GEAR, SECTOR, 16T
47
3233832
SWITCH, ROTARY, 6 PIN
48
3235456
PLATE, PARK, 12 FACE
49
3235982
STAR, DETENT,
5
3235207
SCREW, HEX FLANGE M8 X 50
50
3235223
SHAFT-IDLER,29T(285803)
51
3235224
SHAFT, REVERS,E 29T
52
3236439
SHAFT, FRONT OUTPUT
53
3235227
BELLCRANK, 92 DEGREE
54
3234073
COLLAR, SHIFT,
55
3234230
TUBE, VENT 90 -1/4 INCH HOSE
56
3235229
GEAR-44T,STAGE2(352842)
57
3235233
ENGAGEMENT DOG,6-FACE(352857)
58
3235234
GEAR-53T(352858)
59
3235236
GEAR-46T,STAGE 3(352872)
6
3235208
SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40
60
3235238
WELDMENT, REAR MOUNT BRACKET
61
3235457
SHIFT DOG, PARK/LOW (353357)
62
3235542
RAIL-SHIFT SHAFT(353622)
63
3235755
SPROCKET-48T,6-FACE REVERSE
64
3235774
GEAR, LOW 64T,
65
3235983
CAM, PARK
66
3235984
DRUM, SHIFT MACH,
67
3236412
GEAR, 13T SNORKEL
68
3235558
WELDMENT,, REAR MOUNT BRACKET
69
3235713
SUBASSEMBLY, SECTOR COVER [INCL ALL HARDWASR]
7
3235332
SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18
70
3235335
SUBASSEMBLY OUTPUT (INCLUDES BEARINGS)
71
3235336
SUBASM.,SHAFT, INCL. BEARING AND RET. RING
72
3235452
SUBASSEMBLY, PAWL, DETENT, ROLLER
73
3235920
SUBASSEMBLY, SHIFT FORK
74
3235996
SUBASSEMBLY, RH COVER
75
3236544
SUBASSEMBLY, LH CASE
76
3235241
CCOOVVEERR, BEARING CENTER DRIVE
77
3235350
BRACKET, WIRE HARNESS
78
3235559
BRACKET, REAR MOUNT
79
3234737
CHAIN, SILENT, TYPE 101, .25P X .40W X 58L
8
3235210
NUT, LOCK HEX FLANGE, NYLON M8 X 1.25
80
4013908
Sensor, Speed, Trans.
81
7662299
SWITCH, ROTARY , 2 PIN RESISTIVE
82
3234755
PLUG, SOCKET HEAD
83
3235495
SEAL, TRIPLE LIP, VITON HELIX 30 X 47
84
3235658
SEAL, TRIPLE LIP, VITON, 25 X 80 X 10
85
3234302
Уплотнительное кольцо
86
3233836
O-RING, -012 VITON
87
3233828
O-RING, -014 VITON
88
3235052
SEAL, TRIPLE LIP, VITON HELIX 40X70X7
9
3234091
WASHER, CUP
