Engine, stator and flywheel - z21r4e92ag / as / bg / bs (c1206285) для мотовездеходов Polaris Ranger RZR PRO XP 4 (Z21R4E92AG/AS/BG/BS) (2021)

Москва и регионы России

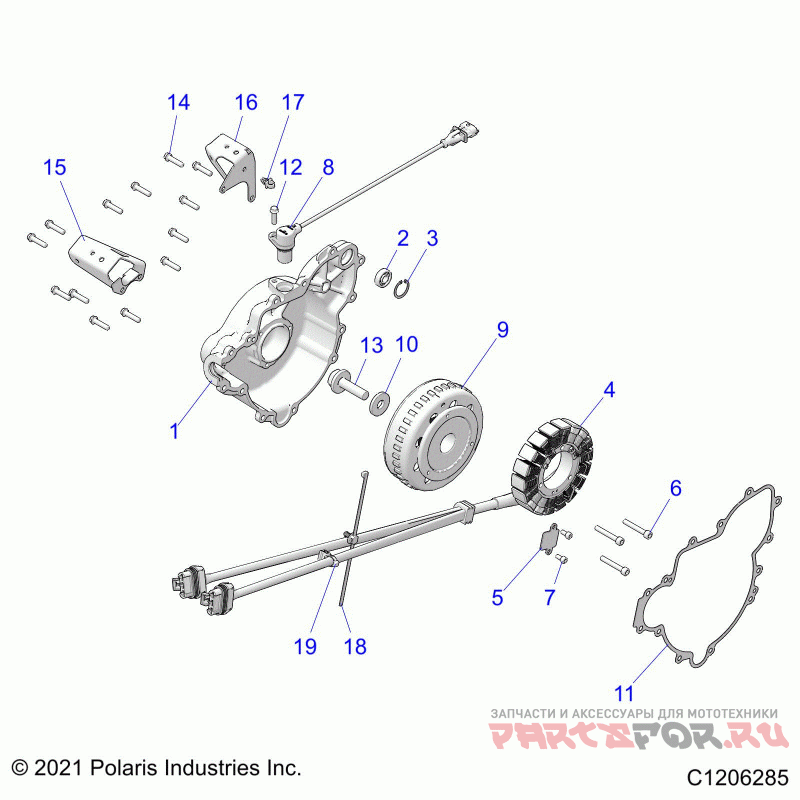

Engine, stator and flywheel - z21r4e92ag / as / bg / bs (c1206285)

Polaris Ranger RZR PRO XP 4 (Z21R4E92AG/AS/BG/BS)

Engine, stator and flywheel - z21r4e92ag / as / bg / bs (c1206285)

#

oem код

название

цена

1

ASM., IGNITION COVER, STARTER BEARING [INCL. 2,3]

ASM., IGNITION COVER, STARTER BEARING [INCL. 2,3]

10

WSHR-32X12X4,HARD

WSHR-32X12X4,HARD

11

GASKET, COVER, IGNITION

GASKET, COVER, IGNITION

12

SCREW-HXFL-M6X1.0X20 8.8 ZY3

SCREW-HXFL-M6X1.0X20 8.8 ZY3

13

SCREW-HXFL-M12X1.25X43 12.9

SCREW-HXFL-M12X1.25X43 12.9

14

SCREW-HXFLG,M6X1.0X25,10.9

SCREW-HXFLG,M6X1.0X25,10.9

15

BRKT-OIL LINE RETAINER

BRKT-OIL LINE RETAINER

16

BRKT-LINE,COOLANT

BRKT-LINE,COOLANT

17

CLIP-WIRE, 6.35MM

CLIP-WIRE, 6.35MM

18

CLIP-ROUTING

CLIP-ROUTING

19

STRAP - CABLE TIE W/ EDGE CLIP

STRAP - CABLE TIE W/ EDGE CLIP

2

BEARING-BALL,9X24X7

BEARING-BALL,9X24X7

3

RING-SNAP,DIN472,24X1.2MM

RING-SNAP,DIN472,24X1.2MM

4

STATOR-900W DUAL

STATOR-900W DUAL

5

BRACKET, RETAINER, WIRE

BRACKET, RETAINER, WIRE

6

SCR-M6X1.0X40,HX/SOC/CP-Y/D

SCR-M6X1.0X40,HX/SOC/CP-Y/D

7

SCREW-M5X0.8X10 SOC/CP-D

SCREW-M5X0.8X10 SOC/CP-D

8

SENSOR, CRANK POSITION

SENSOR, CRANK POSITION

9

FLYWHEEL-900W

FLYWHEEL-900W
