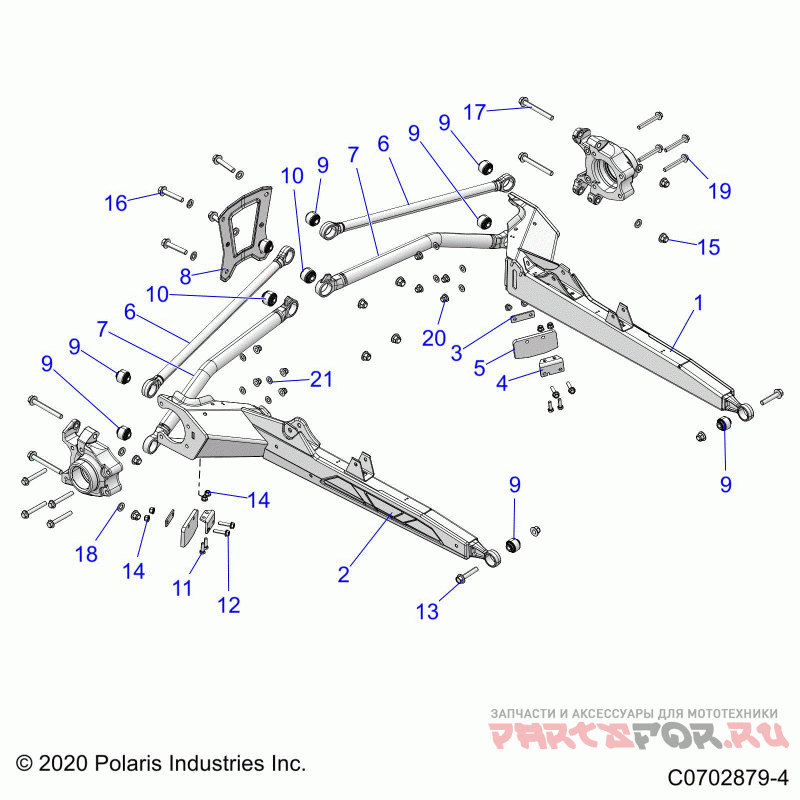

Suspension, rear control arms - z21r4c92al / bl / d92am / bm / e92as / bs (c0702879-4)

Polaris Ranger RZR PRO XP 4 (Z21R4C92AL/BL/D92AM/BM/E92AS/BS)

Polaris Ranger
#oem кодцена
1
1544330-458
WELD-TRL ARM,LH,BLK [EAS][EBS]
1
1544330-707
WELD-TRL ARM,LH,PRL MLTD [CAL][CBL]
1
1544330-849
WELD-TRL ARM,LH,Z.BLUE [DAM][DBM]
10
7082283
BEARING-SPHERICAL,LOW MISALIGN
11
7518952
SCR-M8X1.25X25 8.8 HEX ZOD
12
7519052
SCR-HXFL-M8X1.25X35 8.8 ZODv
13
7519138
SCR-HXFL-M12X1.5X60 10.9 ZOD
14
7547332
NUT-M8X1.25, FLG, NYLOC-OLIVE D
15
7547334
NUT-M12X1.5, FLG, NYLOC-OLIVE D
16
7520477
SCR-HXFL-M12X1.5X65 10.9 ZOD
17
7520479
SCR-HXFL-M12X1.5X105 10.9 ZOD
18
7556287
WSHR-13.0X24.0X2.5 ZPC
19
7519286
SCR-HXFL-M10X1.25X75 10.9 ZOD
2
1544331-458
WELD-TRL ARM,RH,BLK [EAS][EBS]
2
1544331-707
WELD-TRL ARM,RH,PRL MLTD [CAL][CBL]
2
1544331-849
WELD-TRL ARM,RH,Z.BLUE [DAM][DBM]
20
7547333
Гайка m10x1.25
21
7556153
WASHER-3/8 FW SAE STL THRU-HRD
22
7547332
NUT-M8X1.25, FLG, NYLOC-OLIVE D
3
5265115-458
BRKT-BACKER,SCRAPER,M.BLK
4
5267029-458
MOUNT-SCRAPER,BLK
5
5454591-070
SCRAPER-DEBRIS,BLK
6
1544089-458
ASM-RADIUS ROD,UPR,BLK [EAS][EBS][INCL. 9]
6
1544089-707
ASM-RADIUS ROD,UPR,PRL MLTD [CAL][CBL][INCL. 9]
6
1544089-849
ASM-RADIUS ROD,UPR,PRL MLTD [DAM][DBM][INCL. 9]
7
1544468-458
ASM-RADIUS ROD,LWR,BLK [EAS][EBS][INCL. 9]
7
1544468-707
ASM-RADIUS ROD,LWR,PRL MLTD [CAL][CBL][INCL. 9]
7
1544468-849
ASM-RADIUS ROD,LWR,Z.BLUE [DAM][DBM][INCL. 9]
8
5265395-458
PLATE-REAR,BOLT BRACE,BLK
9
7082253
BEARING-SPHERICAL
