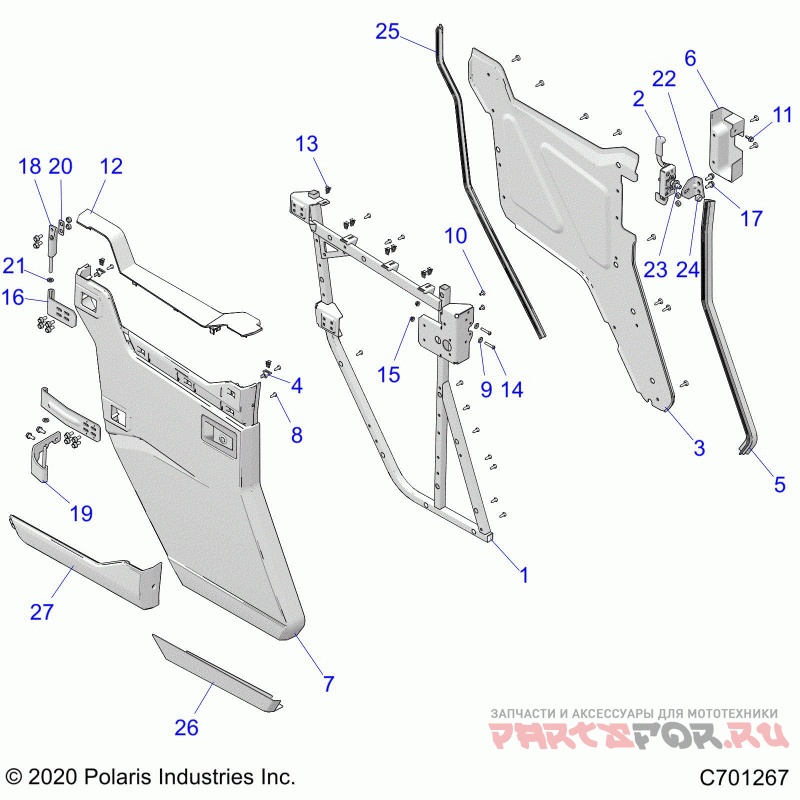

Body, rear doors - r21rsm99ag (c701267)

Polaris Ranger RANGER CREW 1000XP PS MUD (R21RSM99AG)

Polaris Ranger
#oem кодцена
1
1025052-329
WELD-HALF DOOR,LH,BLK
1
1025053-329
WELD-HALF DOOR,RH,BLK
10
7519045
SCR-TX TRUSS-#14X3/4, HI/LO ZBK
11
7557227
WSHR-8.4X16X4.25 CONICAL
12
7518991
SCR-M6X1.0X12 8.8 TXPH ZOD P30
13
5457662
PNL-RR DOOR,INNER,LATCH,LH
14
2208920
RVT-1/4 X .08-.31,NYLON BLK
15
5454776-070
PANEL-TOP CAP,HALF DOOR,LH,BLK
15
5454777-070
PANEL-TOP CAP,HALF DOOR,RH,BLK
16
5270073
PANEL-INNER DOOR,REAR,RH
17
7519806
CLIP, DASH, TRIM, METAL
18
7520597
SCREW-TORBH-M6X1.0x35 8.8 ZPY C
19
7547339
Гайка m6x1.0
2
2010499
ASM-LATCH,DOOR,LH
20
5264003-458
BRKT-HINGE,H DOOR,MID,BLK
21
7519936
SCREW-HXFL-M8X1.25X20 8.8 ZB [TO 4/29/2020]
22
7521168
SCREW-HXFL-M8X1.25X20 8.8 ZPB [FROM 4/29/2020]
23
1023147-458
WELD-HINGE,MID,LH,BLK
23
1023148-458
WELD-HINGE,MID,RH,BLK
24
2207709
WELD-HINGE,LOWER,LH,BLK
25
5256140-458
PLATE, HINGE, BLACK
26
5439712
WASHER-0.62X0.330 X .060 FL-Y
27
5265564-458
BRKT-STRIKER,LH,BLK
27
5265565-458
BRKT-STRIKER,RH,BLK
28
7519358
PIN, STRIKER
29
7540000
NUT-NYLOCK, M12X1.75, 0600110
3
5270072
PANEL-INNER DOOR,REAR,LH
30
5510961
SEAL-REAR HALF DOOR,REAR
31
5265638-707
BRKT-HALF DR,TRIM,RR,LH,P.MLTD
32
5265639-707
BRKT-HALF DR,TRIM,RR,RH,P.MLTD
33
5455483-728
PANEL-OTR DOOR TRIM,PNT,LH,PM
34
5455484-728
PANEL-OTR DOOR TRIM,PNT,RH,PM
4
2010500
ASM-LATCH,DOOR,RH
5
5268463-329
BRKT-HLF,DOOR,H,CLIP,RH,BLK
6
2207924
SEAL-REAR HALF DOOR,FRONT
7
5457663
PNL-RR DOOR,INNER,LATCH,RH
8
5263999-S
BRKT-HLF,DR,H,CLIP,BLK
9
5454830-S
PANEL-RR DOOR,OUTER,LWR,LH,BLK
9
5454831-S
PANEL-RR DOOR,OUTER,LWR,RH,BLK
NS
7518936
SCR-M6X1X16 TR/TX-M
