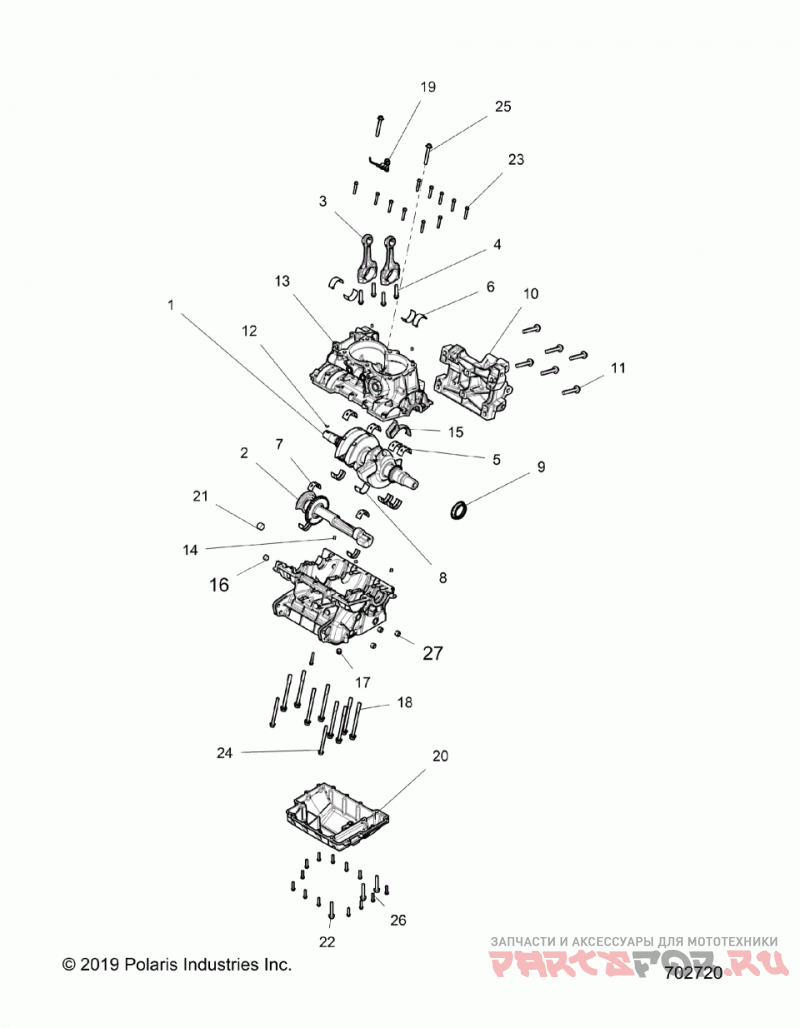

Engine, crankcase and crankshaft - z20nae99fc / e99nc / s99cc / s99fc (702720)

Polaris Ranger RZR XP 1000 TRACTOR/EU/ZUG (Z20NAE99FC/E99NC/S99CC/S99FC)

Polaris Ranger
#oem кодцена
1
3023169
ASM-CRANKSHAFT
10
5137795
Держатель
11
7520467
Болт
12
7721122
Сегментная шпонка
13
1205720
ASM-CRANKCASE [TO 1/1/2020] [INCL. 14-18,27]
13
2207373
KIT, CRANKCASE [FROM 1/1/2020][INCL. 14-19,21,23,24,27]
14
5132835
PIN-DOWEL,M6X10 [FROM 1/1/2020]
15
5452616
DIVERTER, OIL DRAIN
16
7052642
PLUG-HEX SCKT,W/O-RING,M16X1.5
17
7518835
Заглушка
18
7521267
SCR-HXFL M10X1.25X115MM 10.9
19
3022856
JET, PISTON
2
1204835
ASM., BALANCE SHAFT
20
5137873
COVER, SUMP
21
7052643
PLUG-HEX SCKT,W/O-RING,M20X1.5
22
7517793
Винт
23
7518578
Винт
24
7519154
Винт
25
7519186
Винт
26
7519297
Винт
27
7052413
Заглушка
3
3023077
ASM-CONNECTING ROD [INCL. 4]
4
7520378
SCR-ROD,MJ9X1X40-4H6H,12.9
5
3514662-002
BEARING, MAIN, BLUE
5
3514662-003
BEARING, MAIN, GREEN
5
3514662-005
BEARING, MAIN, RED
5
3514662-001
BEARING, MAIN, WHITE
5
3514662-004
BEARING, MAIN, YELLOW
5
9999999
BEARING-MAIN,G-90,41MM
6
3514663
BEARING-CON ROD,G-90,41MM
6
3514663-002
BEARING, CONNECTING ROD, BLUE
6
3514663-003
BEARING, CONNECTING ROD, GREEN
6
3514663-001
BEARING, CONNECTING ROD, WHITE
6
3514663-004
BEARING, CONNECTING ROD, YELLOW
7
3514756
BEARING, BALANCE SHAFT
8
3514803-002
BEARING, MAIN, BLUE
8
3514803-003
BEARING, MAIN, GREEN
8
3514803-004
BEARING, MAIN, YELLOW
9
3610284
SEAL-CRANKSHAFT
