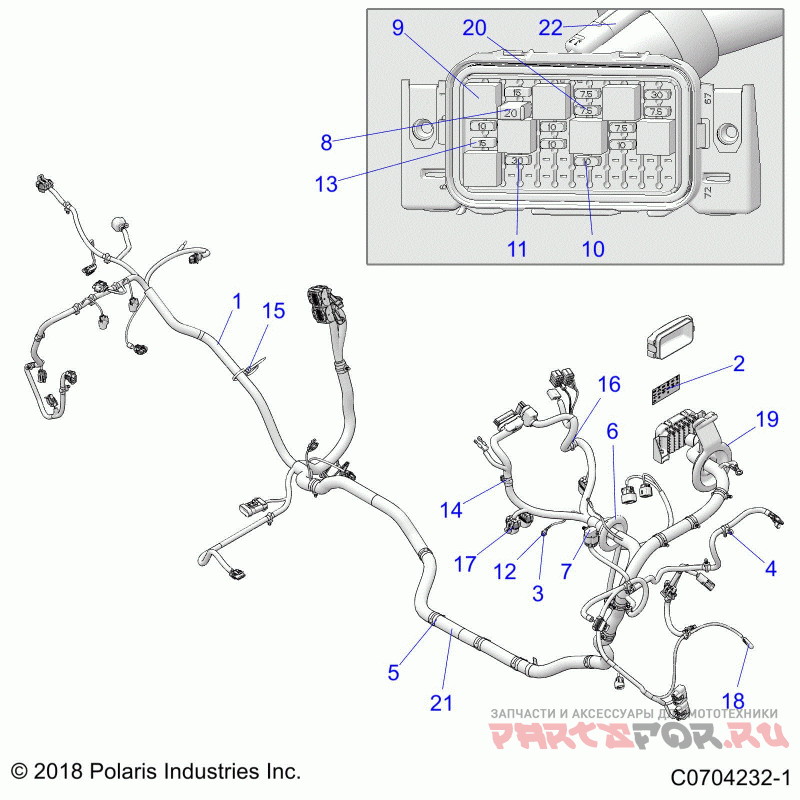

Electrical, wire harness - z20a5k87bg (c0704232-1)

Polaris Ranger RZR 900 50 INCH PS RC

Polaris Ranger
#oem кодцена
1
2415113
HARNESS-CHASSIS,RZR,900,RC [INCL. ALL]
10
2434016
FUSE, IGNITIOIN, 10 AMP
11
2434015
FUSE,MAIN,30 AMP,(10)
12
2413217
LED - PANEL MNT, 12V, BLUE
13
4010859
Fuse, Mini Blade, 15 Amp.
14
7082402
CLIP-EDGE, 1-3mm THICKNESS
15
7081916
CLIP-DOUBLE CABLE TIE W/XMAS TREE 6.35MM HOLE (BK)
16
7081890
CLIP, EDGE, HARNESS
17
5438233
CAP - VINYL, 500X1000, BLACK
18
5438230
CAP - VINYL, 125X375, BLACK
19
5416469
GROMMET - DASH FUSE CTR, RZR
2
7192392
LABEL-FUSE BOX
20
4011068
FUSE - 7.5, MINI BLADE (BROWN)
21
2411035
DIODE - 6 AMP, 1/4, 3/16 TERM
22
2410000
DIODE - 6 AMP, 1/4, 3/16 TERM
3
7082020
CLIP - ROUTING, DIN BOX
4
7081916
CLIP-DOUBLE CABLE TIE W/XMAS TREE 6.35MM HOLE (BK)
5
7081496
CLIP-ROUTING
6
5813954
GROMMET - 65 MM, BLK
7
4012170
COVER - DIAGNOSTIC, W/ CLIP
8
4011372
BREAKER, CIRCUIT, 20 AMP, SEALED
9
4016819
RELAY - SPST, 12V, 20A, EPXY, HFA
